Description
The Water Resistant Toggle Switch Panel features five 15A 12 VDC toggle switches with blue LED indicator lights, blue LED lit double USB power socket, ATC fuse holders, and a decal sheet. USB power socket output is 4.8A, 2.4A per side. Constructed of injection molded ABS and polycarbonate. Installs with four #6 RH fasteners (not included). Rated IP66.

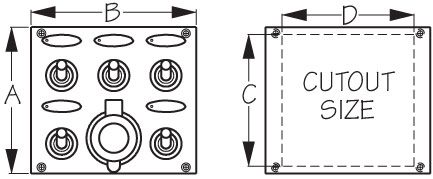

| A | B | C | D |
| 4" | 4-5/16" | 3-3/8" | 3-3/8" |
View Water Resistant Toggle Switch Panel with USB Power Socket Instructions
