Tricky Five Plans

Write a Review
16'5"/5.00 m
Your plans should arrive via email within 48 hours. The plans are in the form of a PDF file.
$16.00 - $145.00

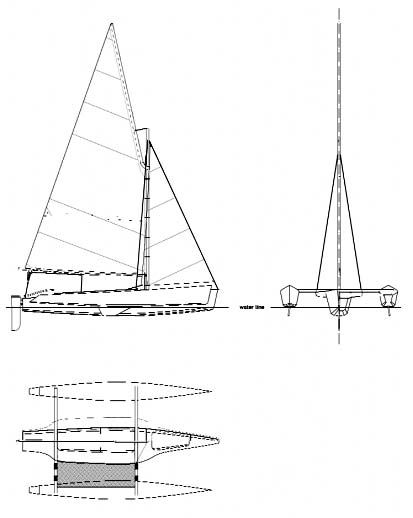

The TRICKY FIVE has been conceived for a precise scope: to realize a boat, which in relation to its size would maximize the ratio between speed and cost. This means that for a determined cost for materials and hours of construction required, it would be the fastest possible.

Due to the lack of a specific index that would allow us to determine if this scope had been achieved, I had to create one myself (the Lod number, which measures the degree of economic efficiency of a boat - see below). The Nlod for TRICKY FIVE is 0.22 and we believe that it is difficult to reach a better result. This has been achieved thanks to hulls that are at the same time easy to build and efficient from the hydrodynamic point of view. The chine hull has a wetted surface slightly higher to that of a round-bilged hull and the length/width ratio is 10.3, which is very high for a trimaran of this size.

The boat is not too wide, which makes it easier to manoeuvre and light. The sail area is quite large, but rather than a Marconi rigging, we have chosen a gaff rig (to be more exact, a cross between the gaff rig and the gunter). This helps to keep the centre of sails low and, above all, is much more economical to build, as the spars may be built in aluminium or wood. As the main sail does not have roach, this eliminates the need for battens. For those who prefer more conventional solutions, we also include a version with Marconi rigging, which is more expensive but undoubtedly gives better performance upwind.

The beams are simple aluminium tubes fixed to the amas and to the main hull. Assembling is done by inserting the tube of the amas into those of the main hull. This operation takes only a few minutes. Also for the centreboard, we have chosen the simplest of solutions from the construction and manoeuvre point of view, i. e. fixed low aspect ratio centreboards mounted under the amas.

It is not the ideal solution for sailing upwind and obviously, we cannot expect this boat to beat against the wind as an American Cup boat would do, but this limit is compensated by absolute speed. While sailing, the boat reaches its best and it is extremely fast and enjoyable. The construction of the TRICKY FIVE is stitch and glue and is very simple. The finishing of internal edges, the most tiresome and lengthy task of this construction technique, is reduced to the minimum, as the internal edges are hidden in the hulls or under the double bottom of the central hull. Outside, all the edges are covered with a single layer of fibreglass - which makes the hull rigid, solid and resistant to abrasion.


While a designer has a large quantity of indexes which allow him to verify his work from a technical point of view, I am not aware if there are such indexes which compare the performance of a boat and its relative cost, that is, its economic efficiency. However, it is an important aspect in that there are not many amateurs for whom the economic aspect does not play an important part. Please allow me, therefore, to suggest one. The Nlod is a ratio between the relative speed of the boat and its relative cost. It allows one also to compare boats with different dimensions. The formula is the following:
Nlod = Vrm/Cr
where: Vrm is the average relative speed in knots. The average speed is defined by the average between upwind speed with light wind (4 knots) called Vb and maximum speed in ideal conditions (beam wind with 15 knots), called Vt. Vm=(Vb+Vt)/2
Speed, as one knows, is a function of the square root of the waterline length (Lwl). Vmr is thus Vm/Lwl 0.5 The cost is an approximate function of the cube of the boat's Lwl, in so far as the cost of a boat increases according to its weight and this increases proportionally to the cube of its length.
The relative cost of a boat is thus: Cr = Ct/ Lwl 3
By expanding the formula, we have Nlod = Vrm/Cr = (Vm x Lwl 2,5)/Ct To be able to compare mass production boats and self made boats, one has to evaluate working hours, which I may reasonably set at 10 _/hr. Ct is for a self-made boat, the cost of materials + working hours x 10.

Length 5.00m
Designer: Paolo Lodigiani and Matteo Costa
Chine hull, stitch and glue Construction
Building Skills: amateur

32 sheets A3
and material list

View AllClose

Additional Information

Designer Name:
Paolo Lodigiani
Sail area (Imperial / Metric):
150 sqf/14 m2
Rig Type:
Gaff, Sloop
Keel Type:
Length (range):
16' - 23'11" / 4.88m - 7.29m
16'5"/5.00 m
Length at Waterline:
9'11"/3.00 m
Hull Weight:
200 - 999 lbs / 90.72 - 453.14kg
Estimated Hull Weight:
302 lb/137 kg
12" - 35" / 30.48 - 91.23cm
Unloaded Draft:
2'/0.6 m
Weight Capacity:
440 lb/200 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull Type:
Hull Shape:
Flat bottom
Power Source:
Horsepower Rating:
3 HP
Built-in Floatation:
Unit of Measure:
Instruction Manual:
General Instructions and Sequence
Lofting Required:
Recommended Experience Level:
Designer's Thoughts on Experience Level:
Boat Type:
