MaXi The Cat Plans PDF

LOA:
26.3' / 8m
SKU:
BK-MAXI-ID
$385.00

Description

For study plans click HERE

MaXi is a trailer-able catamaran for amateur construction. The beam of the boat is 2,44m. It can have also water ballast. The wing seat adds a tremendous amount of stability. With its bouncy device on the mast top, the boat can be righted by slanted the mast for about 12 degrees. Like all my designs the boat is to be built in the (Ply)wood/glass fiber/Epoxy composite system

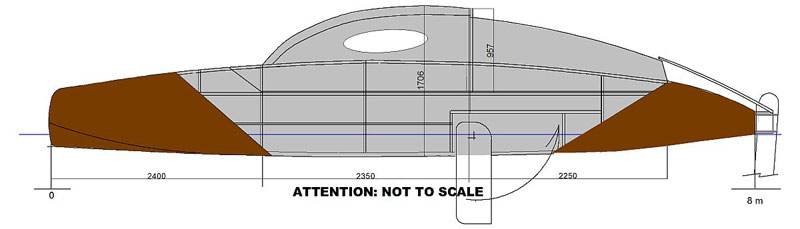

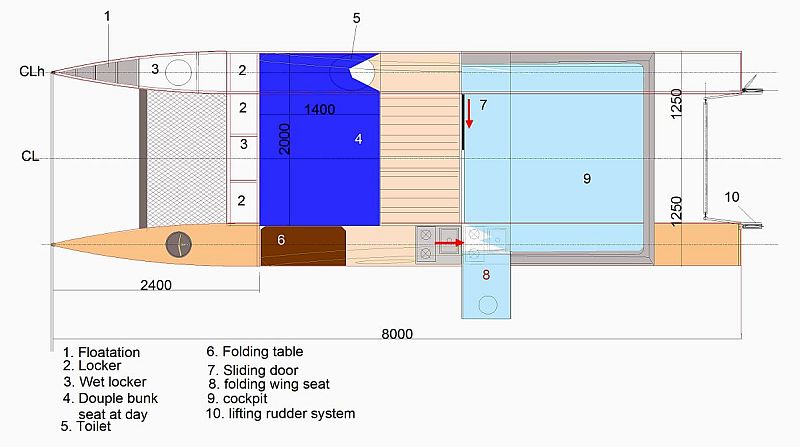

Here something different, have fun. My MaXi is a homage to the G32 from the Gougeon brothers. The hulls are, for easy of construction, Sharpie shaped, with some modifications at the bow. For best sailing performance the boat has centre/dagger boards. The rig has a boom system roll system to shorten the main sail. It is, as the mast, easy to build. For stability the boat has water ballast and a "wing seat" which is, in rest position a backrest in the cockpit. By sitting there the stability increase is bigger as with 200 L water ballast. The lifting device on the top of the mast helps to right the boat again. The inside of the cabin is comparable to my ECO 5.5.



Specificity (preliminary)

L.o.a. 8,0 m
Beam 2,44 m
Draft hulls 0,25 m
Dagger board down 1,10 m
Sail area
Main sail 15,00 m2
Jib 11,20 m2
Reacher 20,00 m2
Weight CWL 1000 kg
Weight empty 560 kg
Static righting
moment 1200 kgm
Outboard engine 10 HP



THE PLANS set consists of 24 dxf drawings and a short description lofting instruction, scandlings etc.

View AllClose

Additional Information

Designer Name:
Bernd Kohler
Sail area (Imperial / Metric):
282sf / 26.2sm
Rig Type:
Sloop
Keel Type:
Centerboard
Rudder:
Kick-up
Length (range):
24' - 35'11" / 7.32m - 10.95m
LOA:
26.3' / 8m
Length at Waterline:
26.3' / 8m
Beam:
8' / 2.44m
Hull Weight:
Over 1000 lb / 453.59kg
Estimated Hull Weight:
1,235lbs / 560kg
Draft:
36" / 91.44cm
Unloaded Draft:
3' 7" / 1.1m
Weight Capacity:
970lbs / 440kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Multihull
Hull Type:
Planing
Hull Shape:
Flat bottom
Cabin:
Cabin
Power Source:
Wind
Motor:
Outboard
Built-in Floatation:
Yes
Trailerable:
No
Cartop:
No
Unit of Measure:
Metric
Instruction Manual:
General Instructions and Sequence
Lofting Required:
No
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
Chuck Leinweber's suggestion
Boat Type:
Sailboat
