Skoota 18 Power Cat Plans PDF

Write a Review
Available for download after checkout


About Woods Downloadable Plans

Click HERE to download Free Study Plans

LOA 5.6m 18ft 4in

LWL 5.4m 17ft7in

BOA 2.5m 8ft2in

Empty weight 320kgs 700lbs

Displacement to WL 700kgs 1500lbs

Draft max 350mm 14in

Outboard engine 9.9-20hp max

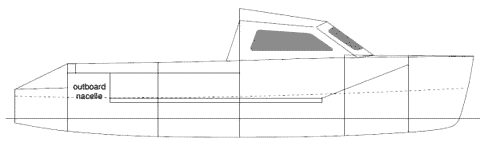

The Skoota 18 is a simple to build and trail power catamaran. It is based on the Chat 18 sailing catamaran but with extra buoyancy aft to take a bigger engine, up to 20hp. This gives an economic cruising speed around 9-10 knots and top speed in the low teens.

The small cuddy offers protection during the day while the boom tent and long cockpit seats mean you can camp on board for a night afloat

The boat is built using conventional stitch and glue plywood, build time is estimated at 300 hours. Please email me for more details and basic studypack.

Basic Materials List (approx, no allowance for waste or errors)

6mm ply 20 sheets
9mm ply 4 sheets

2in x 1in 40m
3in x 1in 2m
2in x 2in 5m
1.5in x 1in 40m
Beams 4in x 2in x 2.5m 5 off
glass tape 150m 100mm (4in) wide
Sheathing (optional) 60sqm 200g/sqm (4oz)
epoxy 20kgs
screws 1000 18mm (3/4in) x no6 200 25mm (1in) x no6 st steel cs
paint, filler etc as required
