Goose Explorer Full Plans PDF

LOA:
12`3/8" / 3.6m
SKU:
PK-GOOSE-EXPLORER-ID
Availability:
Download after check out
$56.00

Description

a Newer version of the discontinued Ooze Goose.

The full plans contain both the OZ Goose plans and the Explorer Supplement - both are needed to build this boat. If you already have the plans for OZ Goose, you can build the Explorer by also purchasing the Explorer Supplement.

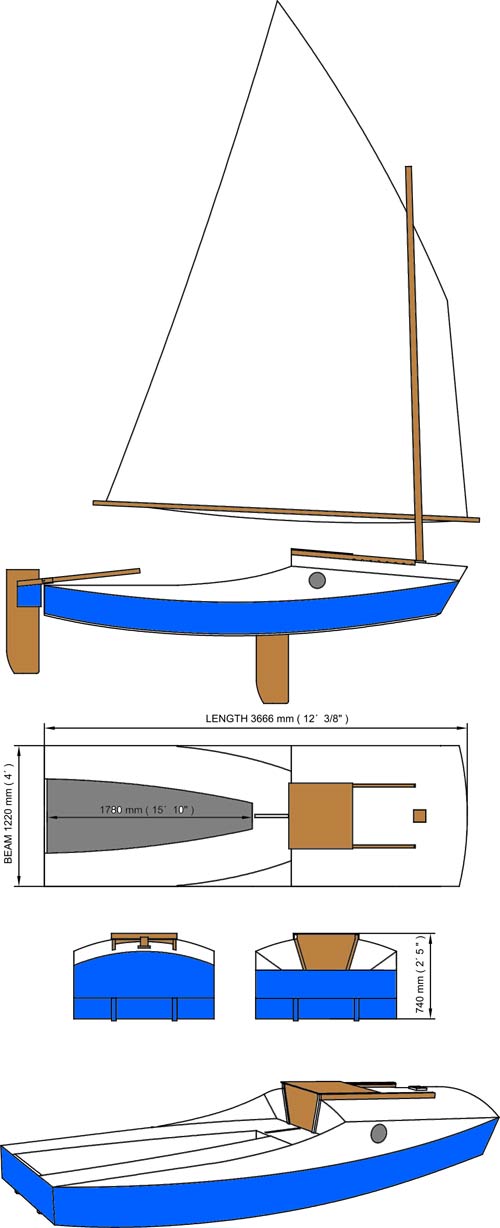

Goose Explorer:

Length 3666mm ( 12`3/8" )

Beam 1220mm ( 4` )

Goose Explorer is a cabin version of Michael storer´s OZ Goose sailboat with a bit more rocker.

These plans are supplements to OZ Goose plans and do not include plans for foils, sails and spars. Those parts must be build according OZ Goose plans. This version includes the OZ Goose plans.

The sail is similar to OZ Racer (lug rig ), Ocean Explorer and OZ Goose, so if you have built one of those boats you can use rig and foils also on Goose Explorer. Ready-made sail can be purchased HERE.

The OZ Goose has a stronger mast - it is possible that OZ Racer or Ocean Explorer´s mast might break in heavy wind! So I recommend building the mast according to OZ Goose plans.

The small cabin provides a cosy space for two or plenty of space for one sailor. The cockpit is really big so this boat is surprisingly spacey for its size.

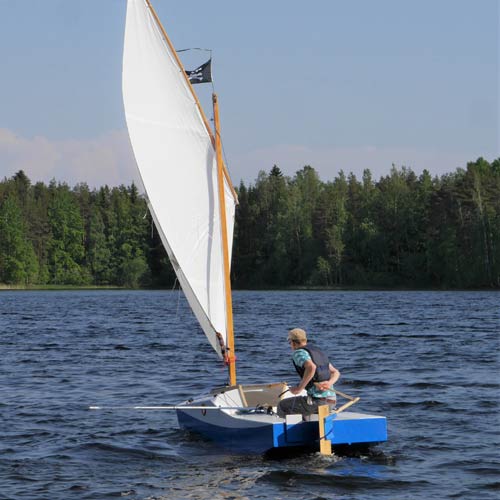

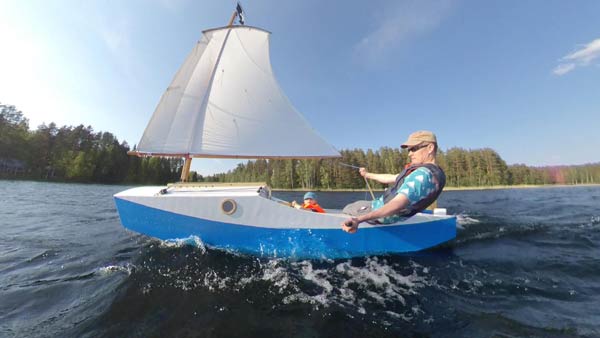

With suitable winds this boat hops to plane - hii o hoi.

Perttu

View AllClose

Additional Information

Measurements:
Metric
Designer Name:
Perttu Korhonen
Sail area (Imperial / Metric):
89 sq. ft. / 8.27 sq. m
Rig Type:
Lug
Keel Type:
Centerboard
Rudder:
Kick-up
Length (range):
8' - 15'11"' / 2.44m - 4.85m
LOA:
12`3/8" / 3.6m
Length at Waterline:
130 " / 3,3m
Beam:
4` / 1,22m
Hull Weight:
85 - 199 lbs / 38.56 - 90.27kg
Estimated Hull Weight:
144lbs / 65kg
Draft:
6" - 11" / 15.24 - 30.27cm
Unloaded Draft:
7" / 177mm
Weight Capacity:
661lbs / 300 kg
Primary Material:
Marine Plywood
Method of Construction:
Plywood on Stringers
Hull:
Monohull
Hull Type:
Planing
Hull Shape:
Flat bottom
Cabin:
Cabin
Power Source:
Wind
Motor:
Outboard
Horsepower Rating:
0,5
Built-in Floatation:
Yes
Trailerable:
Yes
Cartop:
No
Unit of Measure:
Metric
Instruction Manual:
Step-by-Step Instructions
Lofting Required:
Yes
Recommended Experience Level:
Beginner
Designer's Thoughts on Experience Level:
Easy shaped
Boat Type:
Sailboat
