Explorer 2 Plans PDF

Write a Review
SKU:
KS-EXPLORER2-ID
Availability:
download after checkout
$35.00

Description

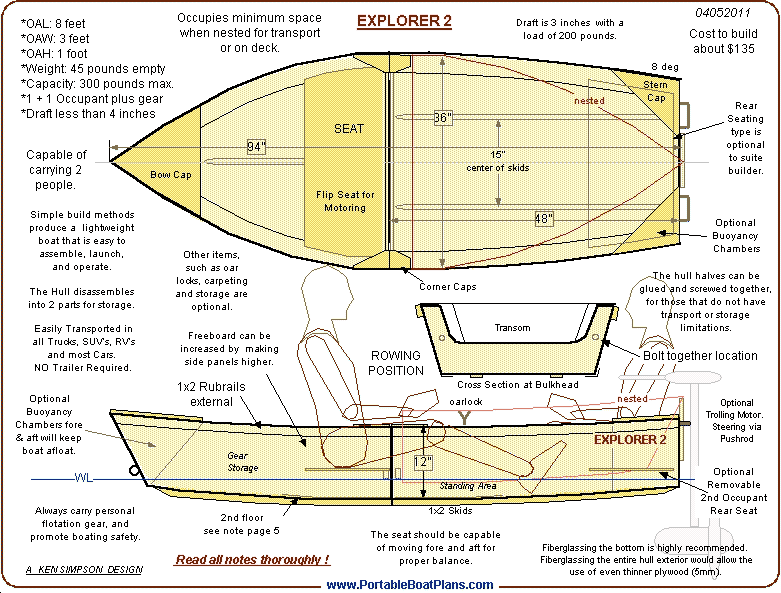

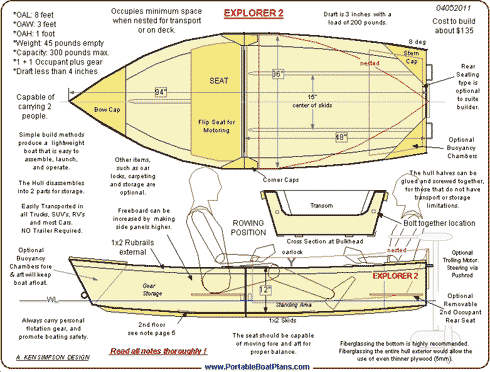

click the image above to enlarge

Explorer specifications:

Length : 8 feet
Width : 3 feet
Weight approx. 45 pounds
Capacity : 300 pounds max.

I have created yet another take-apart small boat called the EXPLORER. It is a One Sheet design, for individual use, to be rowed or paddled, but will accept a trolling motor. This is also a nesting design, that will fit in most any vehicle, and is only 50 inches long for transport. The primary features are: small size, weighs 40 pounds with a 250 pound capacity, $100 to build basic hull, tape & glue construction and no trailer required.

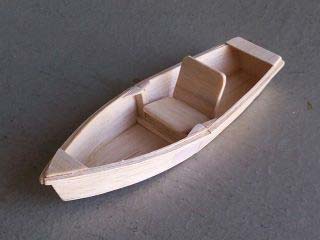

Explorer Assembled

As you can see, this is a small boat with character and will not break the bank to build. Construction is straight forward, and the plans, alhough brief (8 pages) are complete.

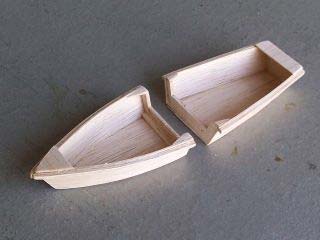

Explorer Separated

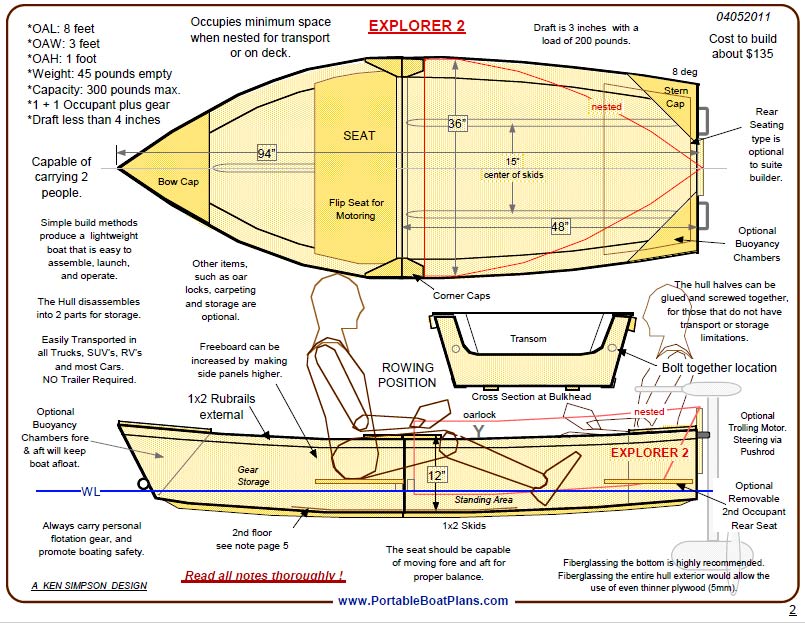

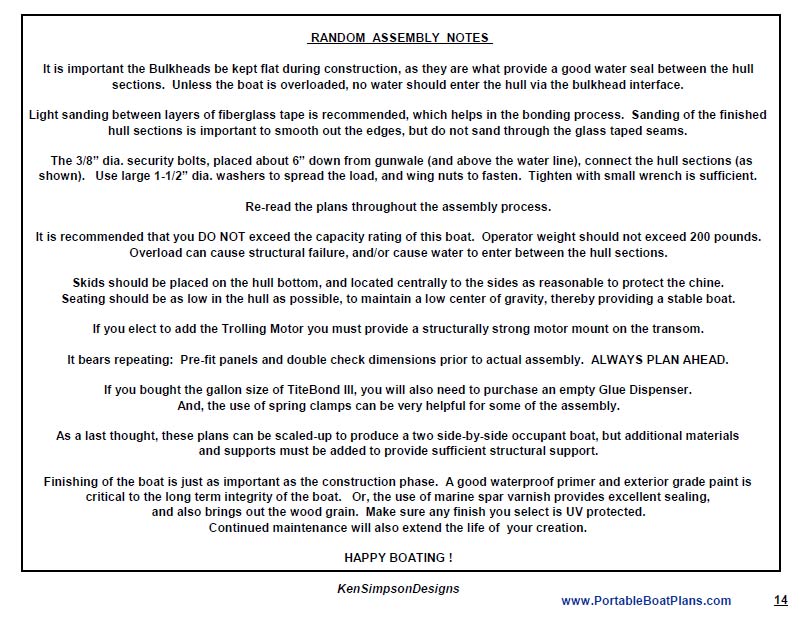

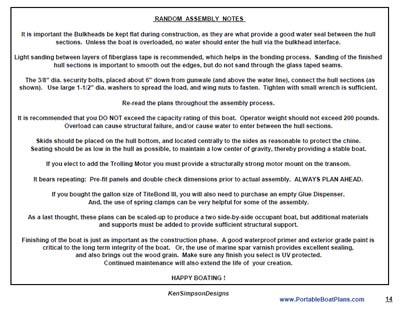

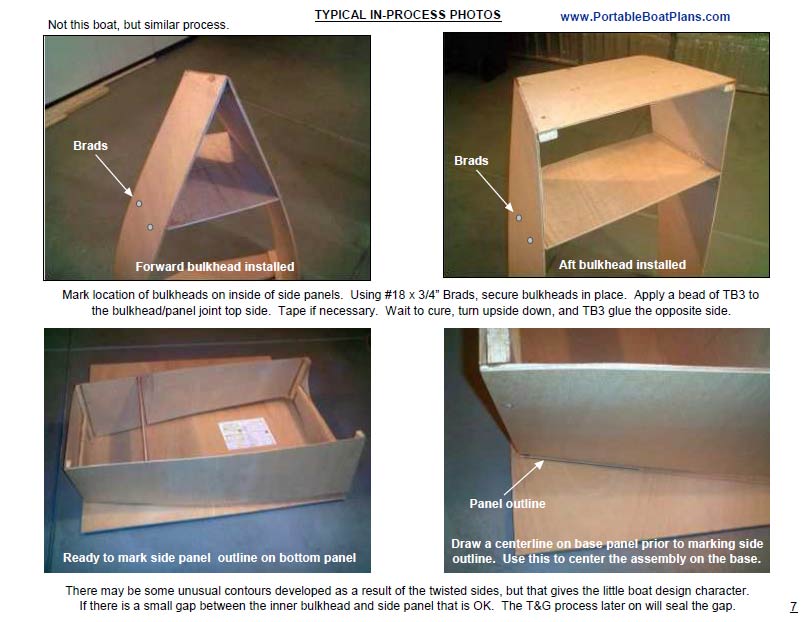

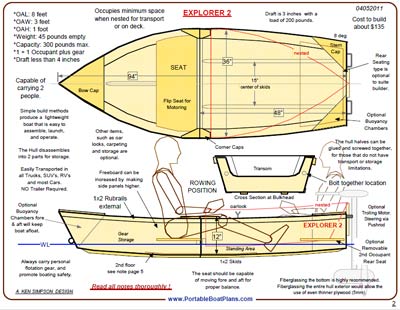

Here are some sample pages from the plans: (click to enlarge)
