Sharpie 550 Plans PDF

Write a Review
Available for download now


Simple sharpie pocket cruiser for coastal and off-shore cruising.

This project start as a special order from “Tigrou”, a guy how really knows what he wants, and also a skilled boat builder.

We have in common quite a fascination for junk sail pocket cruisers, from Blondie Hasler’s Jester to Roger Taylors’s Mingming.

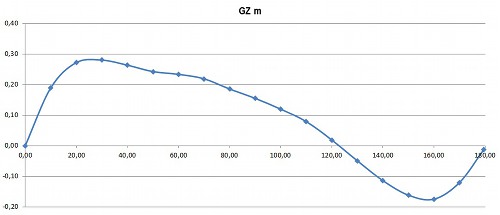

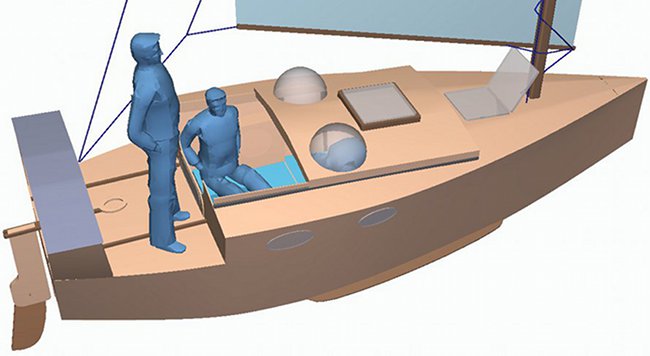

We put all we have always dreamed in this design, chine runners, large sliding roof, inside steering and control. Preliminary calculations ensure self-righting ability and a CE C class category.

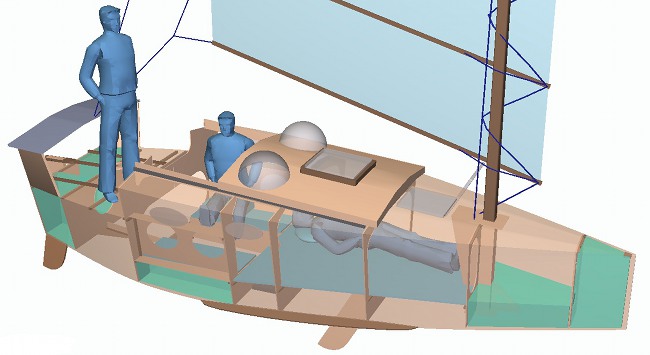

The inside includes a large double bunk, a saloon and huge storage place, even for two folding bikes. In rough weather, the sliding roof must be closed, and let only the central hatch open.

Construction is mainly stich & glue, I can provide DXF files of all pieces in demand.

- LOA 5.50m x beam 1.88 m
- SA 15 m² - Junk sail.
- Weight 500 kg, with 120 kg of ballast
- Weight full load 800 kg
- Cruiser for two, daysailer for 4 (CE C/2 D/4)

Full plans in PDF with 3D building guide.
14 sheets of ACX 3/8 - 9 mm plywood and 3 sheets of ACX 1/2 - 12 mm plywood.

The plans details all the parts dimension, the parts nesting on plywood sheets, a complete building sequence in 3D.

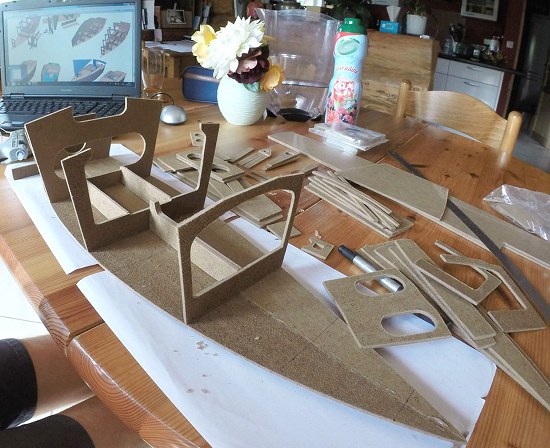

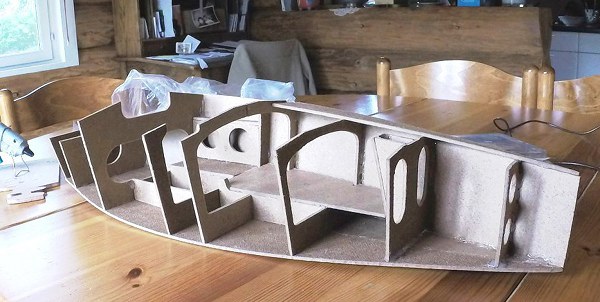

Model by "Tigrou" using his home made CNC router

View AllClose

Additional Information

Metric & Imperial
