Sharpie 470 Plans PDF
- SKU:
- JD-SHARPIE470
- Availability:
- Available for download now
Description
A fast and narrow pocket cruiser, with a double bunk, and place for all your camping stuff.
- LOA 4.70 m x beam 1.64 m
- SA 9.9 m² - Bermudian or gaff rig.
- Weight 250 kg
- Weight full load 500 kg
- Cruiser for two, daysailer for 3 (CE D/3)
Full plans in PDF with 3D building guide.
10 sheets of ACX 3/8 - 10 mm plywood and 1 sheets of ACX 1/4 - 6 mm plywood.
Simple lumber assembly for straight parts, and stich & glue epoxy joints for the hull.

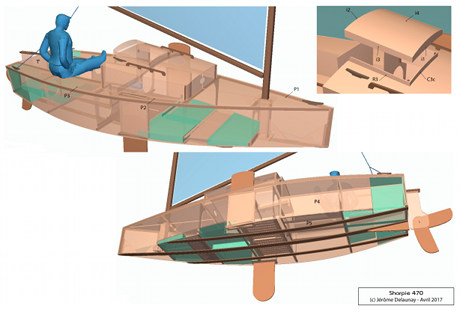

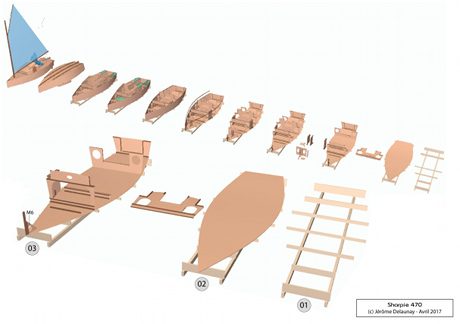

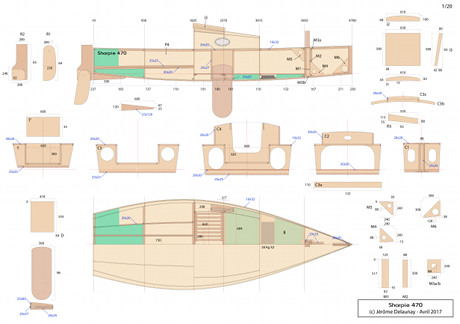

The plans details all the parts dimension for both models, the parts nesting on plywood sheets, a complete building sequence in 3D and some detail pictures.
Two daggers boards, unstayed hollow mast, and a trim ballast.
