Backsplash V2 Plans

LOA:
10`9" / 3.29m
SKU:
PK-BACKSPLASH
Availability:
Download after check out
$35.00

Description

This is version 2 of s&g backpack kayak. Version 2 is 425mm longer compared to original boat. The middle part is exactly same! Only bow and stern parts are longer, so if you have built the original version, you can update it by just building longer bow and stern parts. (Those who have bought the original plans, log in to your Duckworks account and you can download the new version by going to your orignial order details)

Version 2 is a bit faster and it can hold a bit more gear or bigger paddler. It is still a very small kayak! Big paddlers might feel that cockpit is a bit small. I think that max paddlers weight is ca. 93 kg (205 lbs).

Version 2 also replaces a bigsplash - bigger version of original backsplash. Note that these longer stern and bow parts are not compatible with the bigsplash.

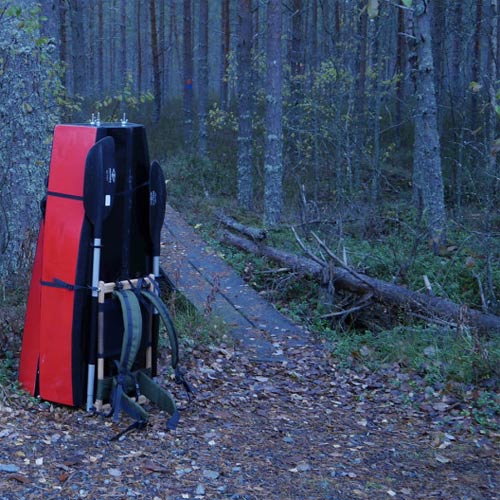

This boat is designed for those who want to explore lakes and rivers which can't be reached by car - or those who like to combine hiking and paddling trips. Boat can be folded together and attached to backpack system and carried like backpack. Backpack frame can also be folded and stored inside boat or stored as one piece on back deck.

Packrafts has inspired me, but I haven't even tried one. Paddling during hiking trips has fascinated me for a long and I started to think about homemade solution. This boat works as backpack during hiking and even overnight gear can be stored inside the boat, but I recommended to pack light.

I buil prototype from 4mm ply - it is ok for daytrips but a bit heavy for overnight trips. I ordered 1.5mm plywood and I try to build another one as really light. 1.5mm ply is really flexible and some parts need extra reinforcement, but it looks interesting. Boat buil of thin material would not be so solid, so it has to be treaded more gently. I think that boat built from 2mm ply would work as extreme hiking boat - 3mm from all round boat and 4mm as day tripper.

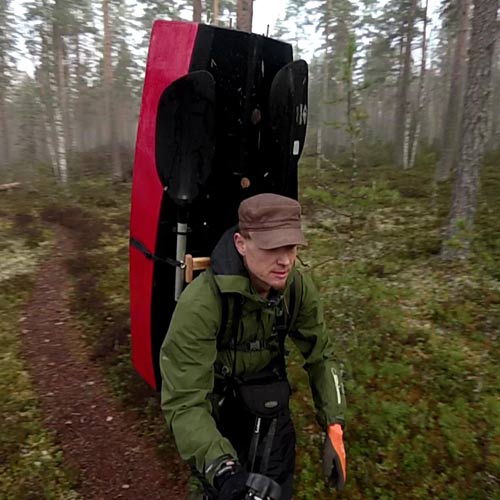

When carrying boat as backpack it feels first a bit back balanced, but you get used it quickly.
I recommend pack heavy gear near your back. I made overnight trip with lots of gear and
it was super fun.

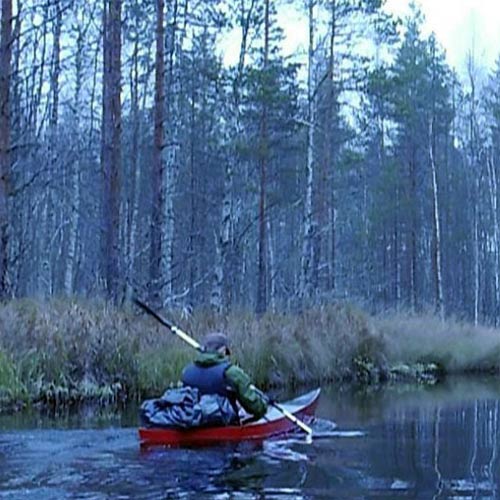

I like how it paddles - it's not a long sea kayak, just have to remember not to try paddle it too hard. It is short kayak and it goes fine its speed - extra force just gets you tired up quickly.

It needs two sheets of 2-4 mm plywood + half sheet of 9mm ply for cockpit ring ( cockpit ring can also be build from leftover ply parts by gluing together several layers, but for simplicity I recommend to build it from 9mm.

Cordura is good choice for backpacks fabric. I also used strong "mesh fabric" on backpack, but cordura is also ok for all backpackfabric parts.

Plans include printable 1:1 patterns. Print these patterns to thick paper and remember to set print scale 1:1 while printing these pages! Plans are available on both A4 and letter formats.
------------------------------

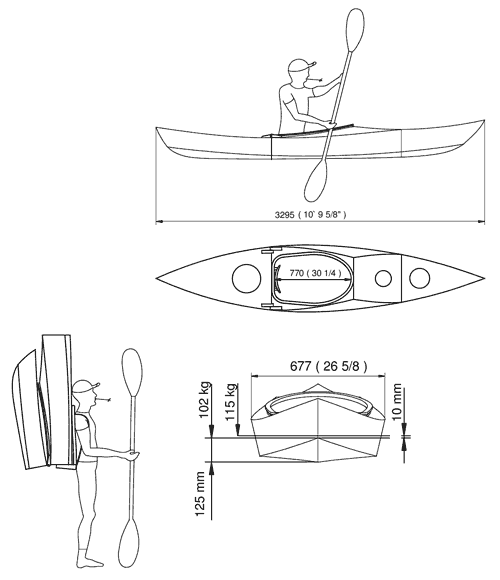

Now Available - a new, bigger Backsplash called BigSplash
Bigsplash is bigger backpack kayak. It can carry 15kg more load compared to original BackSplash.


Use BackSplash plans to build parts which are not shown on the BigSplash supplement.

Plan supplement includes printable 1:1 patterns. Print these patterns to thick paper and remember to set print scale 1:1 while printing these pages! Plans are available on both A4 and letter formats.



View AllClose

Additional Information

Measurments:
Metric
Designer Name:
Perttu Korhonen
Length (range):
8' - 15'11"' / 2.44m - 4.85m
LOA:
10`9" / 3.29m
Length at Waterline:
122" / 3,1m
Beam:
26 3/8" / 670mm
Hull Weight:
Under 85 lbs / 38.56kg
Estimated Hull Weight:
39lbs / 18 kg
Draft:
Under 6" / 15.24cm
Unloaded Draft:
4,5" / 115mm
Weight Capacity:
210 lbs / 95 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Monohull
Hull Type:
Displacement
Hull Shape:
V bottom
Power Source:
Human
Built-in Floatation:
Yes
Trailerable:
No
Cartop:
Yes
Unit of Measure:
Metric
Instruction Manual:
Step-by-Step Instructions
Lofting Required:
Yes
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
Sectional boat - needs some attention
Boat Type:
Canoe / Kayak / SUP
