Luonteri Plans PDF

LOA:
16` 9 1/2" / 5,1m
SKU:
PK-LUONTERI-ID
Availability:
Download after check out
$40.00

Description

Luonteri

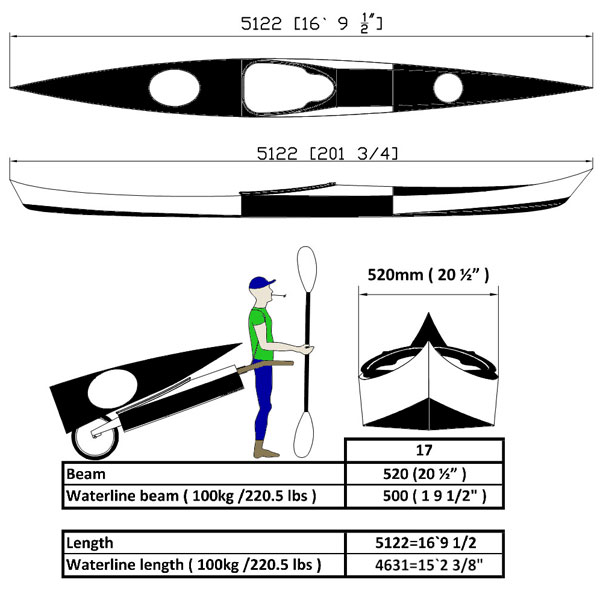

Length 5122mm (16` 9 1/2")
Beam 520mm ( 20 1/5” )
Paddlers weight ca. 70-95 kg ( 154-210 lbs ).

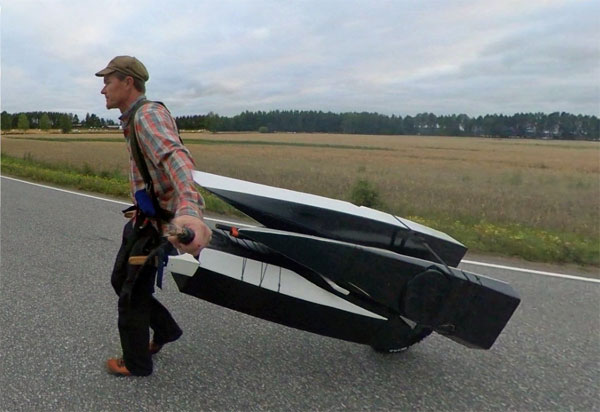

Luonteri is a “trail hiking kayak”, that can be divided into three parts. It makes storage and transportation more easy. In addition, the kayak can be transported as a “cart” with one wheel along roads or trails. If your planning transitions along trails, I recommend packing lightly and using a stronger 20” fatbike wheel. While paddling, the wheel must be transported on the back deck. 12” Kids bike wheel fits inside boat, but it is not as good on trails.

This is not the easiest kayak to build - there is nothing particularly difficult, just use some time while mounting parts together.

Plans are available in both A4 and letter formats. Be sure that you select right file to match your paper size. At the end of the plans there are printable 1:1 patterns. Check your printing options, that you have set print scale 1:1 or scale = none when printing these pages. Print template pages on as thick paper you have and check after printing, that dimensions on templates are correct!!

View AllClose

Additional Information

Measurments:
Metric
Designer Name:
Perttu Korhonen
Length (range):
16' - 23'11" / 4.88m - 7.29m
LOA:
16` 9 1/2" / 5,1m
Length at Waterline:
15´2" / 4,63m
Beam:
20 1/2" / 520mm
Hull Weight:
Under 85 lbs / 38.56kg
Estimated Hull Weight:
48lbs / 22 kg
Draft:
Under 6" / 15.24cm
Unloaded Draft:
5" / 10cm
Weight Capacity:
231 lbs / 105 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Monohull
Hull Type:
Displacement
Hull Shape:
V bottom
Power Source:
Human
Built-in Floatation:
Yes
Trailerable:
No
Cartop:
Yes
Unit of Measure:
Metric
Instruction Manual:
Step-by-Step Instructions
Lofting Required:
Yes
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
Sectional boats, needs some attention.
Boat Type:
Canoe / Kayak / SUP
