Venezia 525 Cabin Plans PDF
- SKU:
- JD-VENEZIA525CABIN-ID
- Availability:
- Available for download now
Description
A classical cabin motor launch based on a simple plywood epoxy semi-dory hull. Rear self-draining cockpit and a shelter cabin.

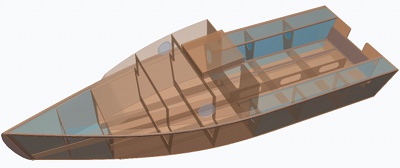

The shape of the bottom is given by a central backbone where the frames are fitted together.
10 sheets of ACX 3/8 and 4 sheets of ½ ACX plywood.

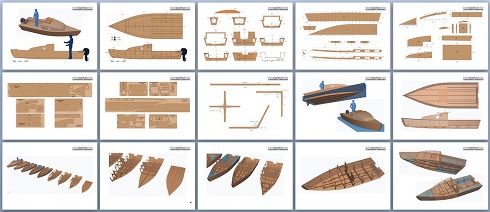

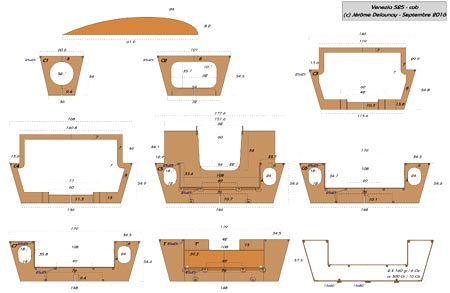

The plans detail all the parts and panel dimensions, the parts nesting on plywood sheets, a complete building sequence in 3D.
