Katta 395 Plans PDF
- SKU:
- JD-KATTA395-ID
- Availability:
- Available for download now
Description
Katta 395 - 3.95m (metric plans)
13' x 7-1/2' â 300 Lbs.
Sail area 9.75 m² 105 Sq.Ft.

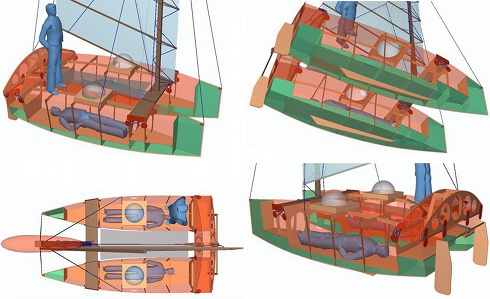

A pocket cruiser catamaran for two with flat bottoms inspired by the genius Berqueâs twin M5.
Stich and glue building on light frames and bulkheads. A large rear beam and a mast float should help in case of capsize. Each hull has a large sleeping place and sitting headroom.
17 sheets of 6mm - 1/4 ACX plywood.

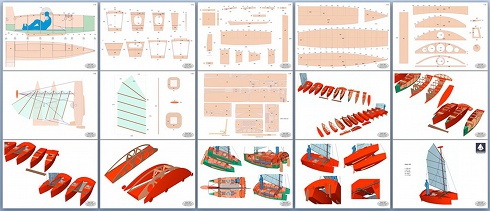

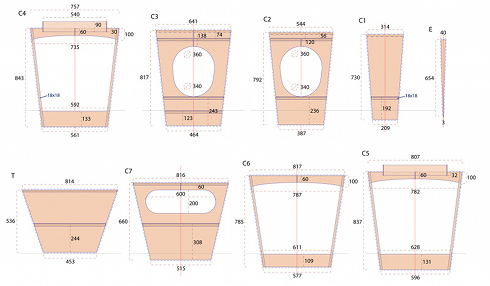

The plans detail all the parts and panels dimension, the parts nesting on plywood sheets, the junk rig and sail, and a complete building sequence in 3D.
