Power 1 Plans
- SKU:
- SEL-POWER1
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description

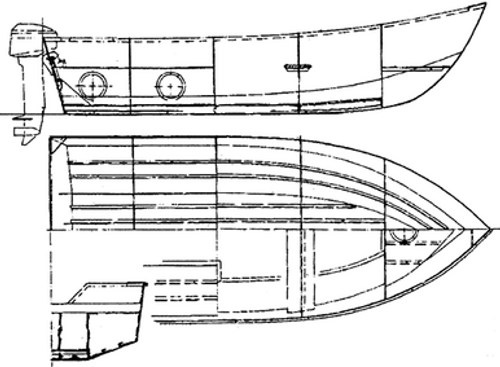

16'x5'6" ply motor launch of ultra simple construction using pre-shaped ply hull panels, frames and transom. The chine joints are completed with epoxy resin fillets and tape making construction quick. A weekend's work will see the hull panels marked out, cut, stitched together, frames and transom in place and all seams epoxied. She uses 4 sheets of 6mm and 3 sheets of 12mm ply in her basic construction (hull, seats etc).
Approximately 250 lbs lightweight depending on how you fit her out. A 20 hp outboard will give a speed of around 25 mph. She can be fitted out to your own requirements. She was originally designed for Scottish waters where she has been very successful.
|
Power 1 Particulars |
||
| LOA | 16' | 4.88m |
| Beam | 5'6" (mk 1) 6' (mk 2) | 1.68m and 1.83m |
| Hull Mid Depth | 2'3" | 0.68m |
| Draft | 9" | 0.23m |
| Approx. Dry Weight | 250 lbs | |
| Engine | Up to 75 hp | |
| Speed | 24 knots with 20 hp | |
| Hull Shape | U shape - flat bottom with 3 planks per side (mark 2) | |
| Construction Methods | Stitch and tape | |
| Major plywood requirements for hull | 4 x 6 or 9mm sheets 3 x 12mm sheets |
|
| Guidance Use | General purpose for up to 6 adults - coastal | |
| Drawing/Design Package | 3 x A1 drawings + 5 x A4 instruction/spec sheets | |
| Additions and alterations included with the plans | Mark 2 with 3 chines per side and 6' beam. | |
