Silver 55 Plans

LOA:
18'/5.5 m
SKU:
BCA-SILVER55-PA
Availability:
Your plans should arrive via email within 48 hours. The plans are in the form of a PDF file.
$16.00 - $145.00

Description

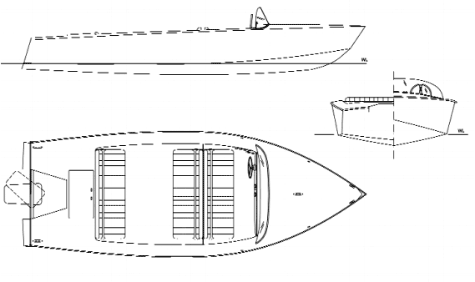

The classical hull shape of the old wooden runabouts of the 70's go perfectly well with the use of marine plywood and this allows the SILVER to be constructed with a similar method to the stitch and glue one. The SILVER boats are not "instant boats" and construction takes quite a long time, but does not represent insurmountable difficulties, not even for the inexperienced boat builder. The bottom panel has a rather elevated curvature and, to obtain it, we have opted for quite thin plywood, which must be coated with fibreglass. The sides, instead, are not coated, so as to finish them transparent stain. The SILVER 45 is the minimum dimension for a motorboat of this type, while the SILVER 55 offers more space and the possibility to have the driver's seat astern, a large enough cockpit which may be transformed into a sundeck. The power should be 25/40 HP for the SLIVER 45 and 40 HP for the SILVER 55, which lies within the limits foreseen for driving without a driving licence, but which allows one also to glide with full load. The boat is unsinkable as the bow is watertight (with crash-box function) and it is fitted with a double bottom.

Length 4.50m
Designer: Paolo Lodigiani
Chine hull, Plywood Construction
Building Skills: medium
deck beam 1.63m
displacement 230kg
draught 0.18m

PLANS

11 sheets A3
Building
instructions
and material list

hull V BOTTOM
ONE CHINE
construction method STITCH AND GLUE
skills requested MEDIUM EXPERIENCE

View AllClose

Additional Information

Measurement:
Metric
Designer Name:
Paolo Lodigiani
Length (range):
16' - 23'11" / 4.88m - 7.29m
LOA:
18'/5.5 m
Length at Waterline:
17'/5,2 m
Beam:
6'6"/2 m
Hull Weight:
200 - 999 lbs / 90.72 - 453.14kg
Estimated Hull Weight:
881 lbs/400 kg
Draft:
6" - 11" / 15.24 - 30.27cm
Unloaded Draft:
8"/0,22 m
Number of Occupants:
6 max
Weight Capacity:
771 lbs/350 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Monohull
Hull Type:
Planing
Hull Shape:
V bottom
Power Source:
Internal Combustion
Motor:
Outboard
Horsepower Rating:
40 HP
Built-in Floatation:
Yes
Trailerable:
Yes
Cartop:
No
Unit of Measure:
Metric
Instruction Manual:
General Instructions and Sequence
Lofting Required:
No
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
No
Boat Type:
Powerboat
