ECO 55 Sail Plans

LOA:
18' / 5.5m
SKU:
BK-ECO55S-ID
Availability:
Download after check out
$160.00

Description

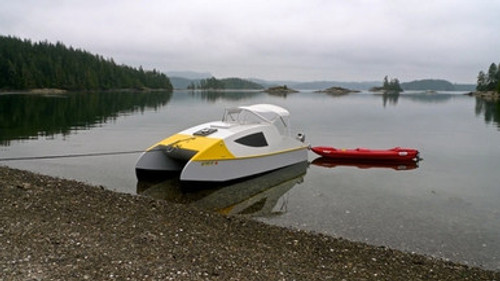

The first ECOnomy cruiser was designed 2003. The first multi hull with a negative bow by the way. The model is basically the same but the experience from owners/builders around the world is flowing in in this updated model. The ECO is a perfect trailer/sailor. With its empty weight of only 290 kg the boat can be even trailered with a medium size car.

It stays that the ECO is a perfect first time boat building project. The boat has been proven to be, in capable hands, a perfect coastal cruiser.

The time proven wood/glass epoxy composite technique is easy to master. The result a light and fast catamaran. The boat is easy to build, also by a first time boat builder. The hulls for instance are single chine hulls. The cabin sides are made from a single sheet of plywood. The bows are now made from single pieces of wood, so the whole construction is now simplified.

There are now two rig option, a new regular rig and my solution for a low cost rig with a dividable mast. The rotating aluminum mast is made from a 80mm diameter tube. The main sail design, with aerodynamic sleeve and still the possibility for standing rigging and shortening of the sail.

Rudders fold automatic back when an object is hit. Single dagger board which can be handled from the cockpit.

The boat sleeps 3 to 4.Good size pantry. This boat can be build for a fraction of the costs of any other boat of this size. See list of materials and calculate for your self.

  • All drawings are CAD drawings
  • Wood/epoxy composite for easy construction and low maintenance.
  • From the trailer into the water without set up time
    Construction time about 350 hours !

Plans consist of 22 Drawings: .JPG or DXF files.
Manual: 16 pages description (Adobe Reader)



SPECIFICATION
L.o.a. - 5.50m
Beam - 2.50m
Draught hull/board - 0.22/1.00m
Weight - 289 kg
Weight max. CWL - 620 kg
Main - 11.4 m2
Jib - 7.10 m2
View AllClose

Additional Information

Measurement:
Metric
Designer Name:
Bernd Kohler
Sail area (Imperial / Metric):
200 sq. ft / 18.5 sq. m
Rig Type:
Sloop
Keel Type:
Daggerboard
Rudder:
Kick-up
Length (range):
16' - 23'11" / 4.88m - 7.29m
LOA:
18' / 5.5m
Length at Waterline:
18' / 5.5m
Beam:
8' 2-1/2" / 2.5m
Hull Weight:
200 - 999 lbs / 90.72 - 453.14kg
Estimated Hull Weight:
637lbs / 289kg
Draft:
36" / 91.44cm
Unloaded Draft:
3' 3-1/2" / 1m
Weight Capacity:
730lbs / 331kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Multihull
Hull Type:
Planing
Hull Shape:
V bottom
Cabin:
Cabin
Power Source:
Wind
Built-in Floatation:
Yes
Trailerable:
Yes
Cartop:
No
Unit of Measure:
Metric
Instruction Manual:
General Instructions and Sequence
Lofting Required:
No
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
Chuck Leinweber's suggestion
Number of Occupants:
3-4
Boat Type:
Sailboat
