Quattro 14 Plans
- SKU:
- WOODS-QUATTRO14-ID
- Availability:
- Available for download after checkout
Description
About Woods Downloadable Plans
Specifications:
Sheet Ply
LOA 4.3m
LWL 4.15m
BOA 2.1m
Weight 80Kgs
SA 13.1 sq mone or two crew (1 trapeze)

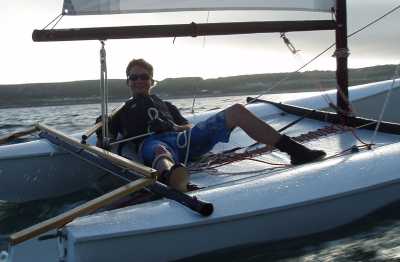

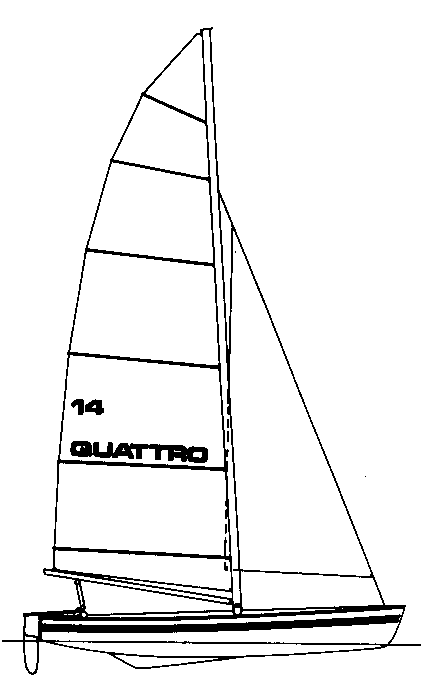

The Quattro 14 has a hull shape similar to the PIXIE, but with the addition of small skegs (which help windward performance) and a larger, more sophisticated rig, and a trapeze for extra speed and power.
As on the QUATTRO 16 aluminium tube crossbeams are used which throughbolt into the hulls forming a very rigid structure.
The QUATTRO 14 is for those who want to race, either singlehanded on the trapeze, or with two light crew (a youth trainer perhaps?)
