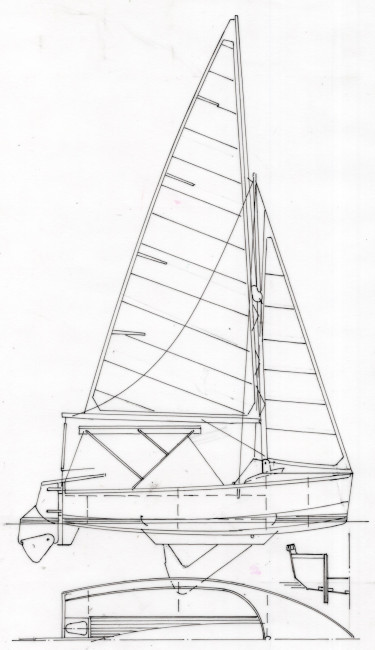

Lynx 16 Open Dayboat

Lynx 16 Open Dayboat

$27.00 - $230.00
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
A client in the Far East wanted a trailable dayboat with plenty of space for crew and with shoal water capability. He very much liked the sturdy and stable looks of the Lynx 16 pocket cruiser but, sailing in hot climes, did not want the cabin - sailing would be done under a Bimini Top. And so, I modified the standard Lynx 16 plans, using the original Lynx 16 hull and altering both the General Arrangement and sail plan to suit.

The twin pivoted steel bilgeboards have been retained working in the seat fronts and giving a minimum draft of just 1'2". The outboard is also retained and with extended cockpit seating, this modified design has plenty of storage space. The boom and mainsail have been raised to clear the Bimini Top - but if the Top is not fitted the mainsail can be fitted lower.

Construction, like the original Lynx 16 is simple stitch and tape although the hull could be easily adapted for ply on frame construction.
The original Lynx 16 plans (photo to the right) are still available HERE

Lynx 16

Lynx 16 Open Dayboat Particulars
LOD 15'9" 4.8m
Beam 6'9" 2.05m
Hull Mid Depth 2'7" 0.79m
Draft 1'2"/3'9" 0.35/1.15m
Sail Area 134 sq.ft 12.49 sq.m
Approx. Dry Weight (excl. additional ballast) 1100 lbs 500 kg
Ballast (depending on use) up to 660 lbs up to 300 kg

Hull Shape

 U shaped with 3 planks per side
Construction Methods Stitch and tape
Major plywood requirements for hull 4 x 4mm sheets
12 x 9mm sheets
36x 12mm sheets
Guidance Use Inland, estuary and coastal
Drawing/Design Package 5 x A1 drawings + 9 x A4 instruction sheets
Additions and alterations included with the plans
!
