ECO 7.5 Plans

LOA:
24' 7" / 7.5m
SKU:
BK-ECO75-ID
Availability:
Download after check out
$280.00

Description

After many requests for a bigger ECOnomy cruiser here she is. For dimensions see the specifications. The layout speaks for it self. This boat is a perfect boat for the whole family. It is designed for extended coastal cruising.

Construction and design: The ECO 7.5 is a multi chine design. Like all our designs the boat is of plywood/glass/Epoxy construction. The headroom in the hulls is from 1.92m to 1.82m where it counts. The seat height around the table is at least 98 cm. Big storage areas (inside and outside) make the boat a perfect one for extended vacations.

The plans show two sail options. The first is a conventional fractional rig. The secone, a wishbone gaff rig, has a roller reefing jackstay for fast main sail operation. Engine choices: two outboard engines, each with about 5 HP or a diesel electric drive with solar panel back up and/or trailing generator.

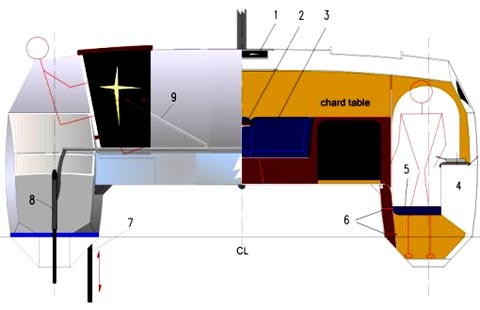

1 Hatch 6 Steps
2 Table 7 Dagger board
3 Settee/double bunk 8 Dagger board rudder
4 Pantry 9 Joystick
5 Forward bunk

The standard figure is 1.75 m tall. The two entrances have sliding doors. The radius for the planking is a constant radius. Planking ; tortured plywood, 6 mm + biaxial glass 340 gr/m2 and one layer 200 gr/m2 glass fabric.

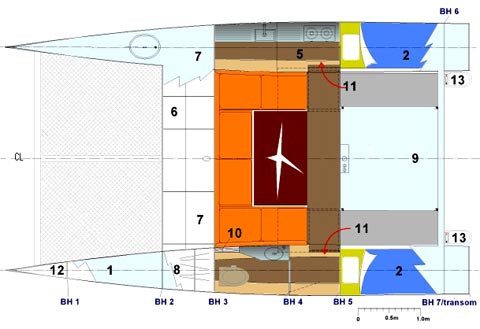

1 Locker 8 Hanging locker
2 Berths 9 Cockpit
3 Settee/double berth 10 Dagger board
4 Bathroom 11 Entrance
5 Pantry 12 Watertight bulkhead
6 Anchor locker 13 Outboard engines
7 Inside

Here is an ECO 7.5 which is under construction in India. The boat is 7.5 m long without the rudders. This one is build in the original wood/glass/epoxy system. Another one also almost ready is built in Thailand in a sandwich system.



Specifications
LOA/LWL - 7.50/7.75 m
Beam - 4.50 m
Draft (ex. Rudder) - 0.30 m
Draft dagger board down - 1.30 m
Weight empty - 750 kg
Weight CWL - 1384 kg
Sail area sloop - 28.60 m²
Sail area wishbone gaff - 27.60 m²
L/B hulls - 1 : 9
B ratio hulls - 46,66% effective
Outboard motor - 2 x 5hp
Electric drive - 2 x 1.5 kW

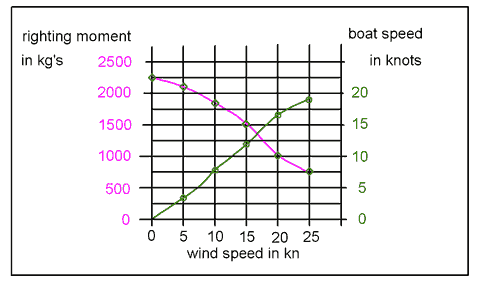

Static righting moment - 2.200 kgm
