Yakyak 425 Plans PDF
- SKU:
- JD-YAKYAK425-ID
- Availability:
- Available for download now
Description
YakYak 425
A sailing Sit On Top kayak for two.
Plywood epoxy building on a central backbone and light frames.
4 sheets of 1/4 ACX plywood.

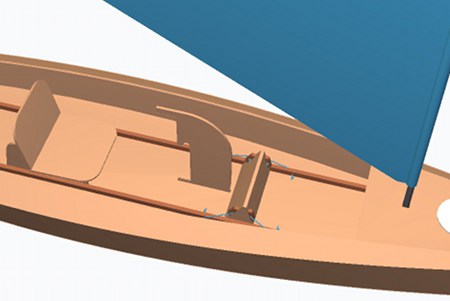

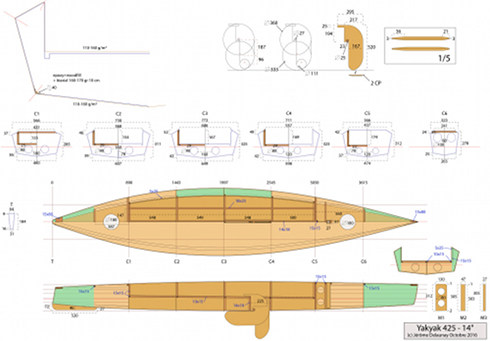

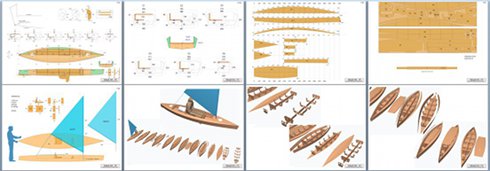

The plans detail all the parts and panels dimension, the parts nesting on plywood sheets, two rigs, a complete building sequence in 3D.
Adjustable seat and footrest.

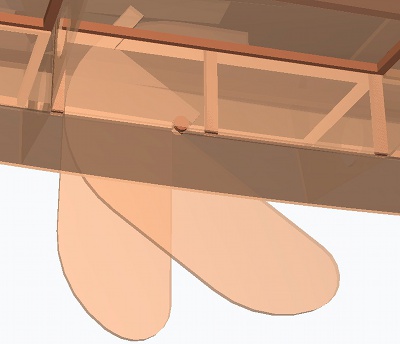

Two daggerboard positions.
Yakyak 425
14' x 2-1/2' - 75 Lbs.
Sail area 20 / 24 Sq.Ft.

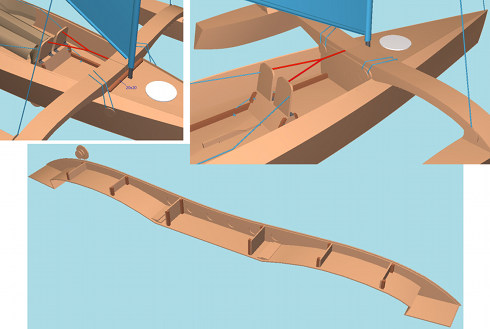

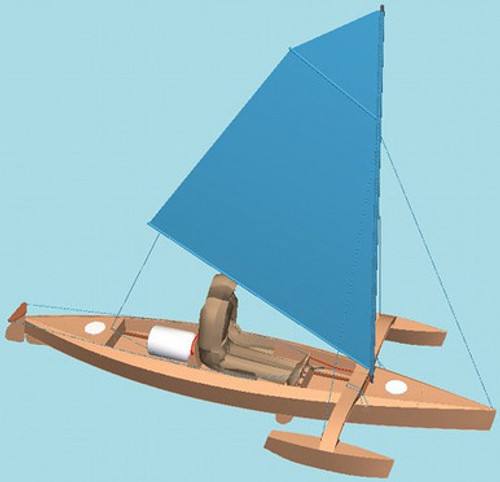

Yakyak 425 - "Sport" Supplement (optional) seen below
To purchase the "Sport" supplement, click HERE

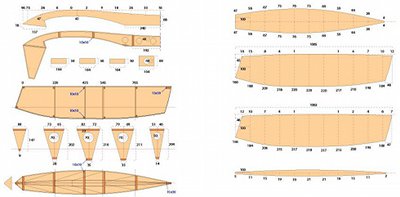

Floats, beam, rudder and larger sail option.
1 sheets of 1/6 or 1/5 ACX plywood.
