Waterman 12 Plans
- SKU:
- SEL-WATERMAN12
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description

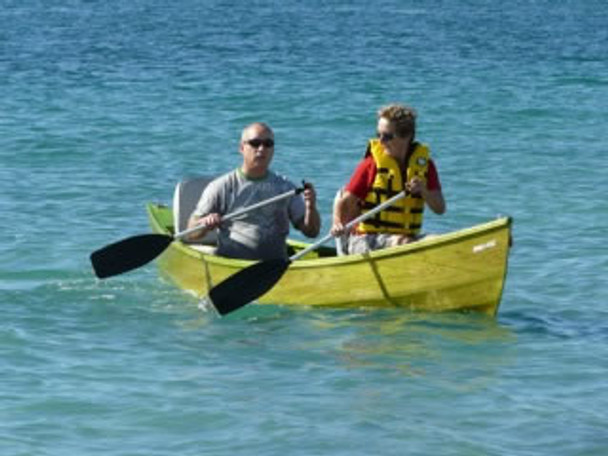

This is a new design for 2001 - we were asked to reduce the length of the Waterman 13 by a foot so that she could be made in 2 boltable halves and fitted into the back of a van for transporting to the water. She was also to be the client's first venture into sailing and so the drawings show details for 2 rigs, leeboards, rudder and side floats for stability. Other details are similar to the Waterman 13.
|
12' Waterman Particulars |
||
| LOA | 12' | 3.66m |
| Beam | 35 1/2" | 0.90m |
| Hull Mid Depth | 13" | 0.33m |
| Approx. Dry Weight | 50lbs | 22.7kg |
| Approx. Capacity | 650lbs | 295kg |
|
Hull Shape |
Narrow flat bottom panel plus 3 planks per side | |
| Construction Method | Stitch and tape | |
| Plywood Requirements | 4 sheets of 4,5 or 6mm | |
| Guidance Use | General purpose and sailing - 2 adult | |
| Drawing/Design Package | 3 x A1 drawings plus 7 instruction sheets - sail plans include lateen, gunter, sprit and lug - side float details also given | |
