Skylark 12' Plans

SKU:
SEL-SKYLARK12
Availability:
Printed plans shipped and PDF plans emailed from Selway Fisher
$101.00

Description

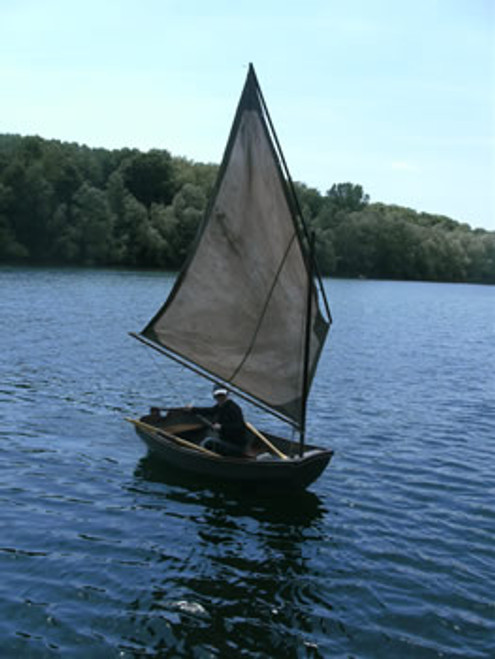

The Skylark 12 is capable of having a small cuddy fitted forward for protection and shelter or simple dry storage of gear. Side benches can be fitted with storage or buoyancy under and the whole boat is big enough to be fitted out to your own requirements. As with the other dinghies of her class, the pram shape gives much additional buoyancy and volume right forward and allows the crew to move around the boat far more freely and safely. Apart from the obvious advantages for a working/fishing craft, this makes life a lot safer for small children. Beam is 5'. With a sprit boom, there is less likely hood of heads getting bumped and the gunter rig combines excellent performance under sail with easy reefing and allows shorter spars which fit inside the boat. She weighs around 100 lbs. which means that she can be car topped and uses 4 sheets of 1/4" ply. Construction is simple stitch and tape (or epoxy) with most of the basic construction taking only a few days and the panel shapes are given on the plans. The plans include all details for the sails etc. There are three different rigs shown for the Skylark 12 and also a 3 chine Mark 2 version.

12' Skylark Particulars
LOA 12' 3.66m
Beam 5' 1.52m
Hull Mid Depth 1'6" 0.46m
Draft 6 1/2"/3' 0.17/0.92m
Sail Area (largest area with gunter main and jib on short bowsprit option) 87.5 sq. ft 8.14 sq.m
Approx. Dry Weight 100lbs 45.35kg
Hull Shape Narrow flat bottom plank plus 3 planks per side
Construction Method Stitch and tape
Major plywood requirements for hull 4 sheets of 6mm exterior or marine plywood
Guidance Use 3 adults plus gear
Drawing/Design Package 4 x A1 drawings plus 11 x A4 instruction sheets - 3 sail plans given including lug and gunter sprit main plus jib and similar with bowsprit
