Sophia 10 Plans
- SKU:
- SEL-SOPHIA10
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description
This canoe is based on our Christine design. She has a length of 10' (3.05m) and a beam of 26 1/2" (0.67m) with a nice round bilged shape given by having 4 planks per side. There is a buoyancy/storage chamber at each end and she is designed to be used like our Little Kate design, with the crew sitting on the bottom of the boat and leaning against a backrest. Mid hull depth is 10" and she is designed for use by children or a small adult with a double paddle.
Below is a nice example of the Sophia built by Kevin Ralphs being enjoyed by his grandchildren Alex and Melina.
|
Sophia 10 Particulars |
||
| LOA | 10' | 3.05m |
| Beam | 26 1/2" | 0.67m |
| Hull Mid Depth | 10" | 0.25m |
| Approx. Dry Weight | 38lbs | 17.2kg |
| Approx. Capacity | 250lbs | 113kg |
|
Hull Shape |
Multi chine - 4 planks per side | |
| Construction Method | Stitch and tape | |
| Plywood Requirements | 2 sheets of 4mm | |
| Guidance Use | General purpose/ child or small adult | |
| Drawing/Design Package | 2 x A1 sheets + 5 x A4 instruction sheets | |
Related Products
Skylark 10' Plans
$88.00
The Skylark 10, for her length, is a large dinghy and quite capable of accommodating a family of 2 adults and 3 children comfortably. Several 10's have been built by clients who have a spare rig...
Highlander 10' Plans
$88.00
The 10' Highlander uses 3 sheets of 6mm (1/4") ply and is considerably larger than it's smaller sister and is ideal for use as a general purpose tender or fishing boat. Her lug rig makes her ideal...
Inishmore 10 Plans
$95.00
The Inishmore is one of a number of strip planked designs that we have enabling the builder to finish up with a beautiful round bilged craft of light weight. The Inishmore is a lovely strip planked...

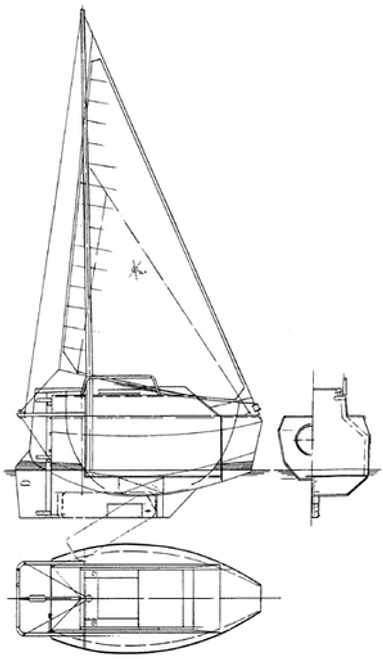

Micro 10 Plans
