Lynnhaven 16 Plans

• Attractive and capable touring canoe
• 1-3 Person capacity
• Paddle as a canoe
• Fit rowlocks and oars for a small pulling boat
• Integral buoyancy/storage in seats
• Easy amateur build
• Ideal school or family project
• Plans include full size patterns
• Illustrated step-by-step instructions

The Lynnhaven 16 is designed for those who want a family fun boat that they can build themselves. I built the prototype in 3 weeks of weekends and evenings, total less than 100 hours of single-handed work.

This is about as much boat as can be built from 3 sheets of plywood, with very little scrap left at the end of the project. I built the prototype from 6mm (1/4") plywood, which produced a robust boat but a bit heavy at 32kg (70lb). It can be built from 3mm (1/8") plywood to about 20kg (45lb) or anything between.

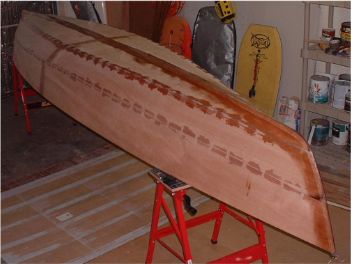

Construction is stitch-&-glue, so it is suitable as a first time boatbuilding project. The plans include full size paper patterns showing every plywood component, nested for marking straight onto the plywood sheets. A set of step-by-step instructions is also supplied, including more than 40 colour photos of the entire building process.

The Lynnhaven 16 is suitable for exploring your local rivers and lakes, or it can be car-topped across the country for camp cruising waters far away.

This design is drawn in metric and has both metric and inch dimensions added.

List of Materials:

Marine plywood 3mm to 6mm thick, to builder's choice
Sheets 1220x2440mm [8'x4'] - 3

Cedar or white pine
22x22mm [7/8"x7/8"] - 12m [40'] (seat framing, bottom rails)
12x22mm [1/2"x7/8"] - 26m [85'] (rubrails, cover strips)

Sundries
Polyurethane glue - 250ml [8oz] bottle
50mm [2"] Fibreglass tape - 20m [65']
Epoxy resin - 5 litres [5 quarts]
Solvent (for cleaning) - 2 litres [2 quarts]
5mm [3/16"] Electrical cable ties - 250
Paint to owner's colour scheme - 2 litres [2 quarts]
6” Screw access cover with O-ring seal and fasteners – 3
Bronze or stainless steel rowlock and fasteners – 2

Please note that our plan prices include for adding imperial measurements to our metric designs if needed by the buyer.

Plywood Touring Canoe

LOA 4.70m (15'5")
Beam 0.9m (3'0")
Weight 20-32kg (45-70lb)
