ECO 520 Study Plan PDF
- LOA:
- 17' 1" / 5.2m
- SKU:
- BK-ECO520-SP-ID
- Availability:
- Plans can be downloaded after checkout
Description

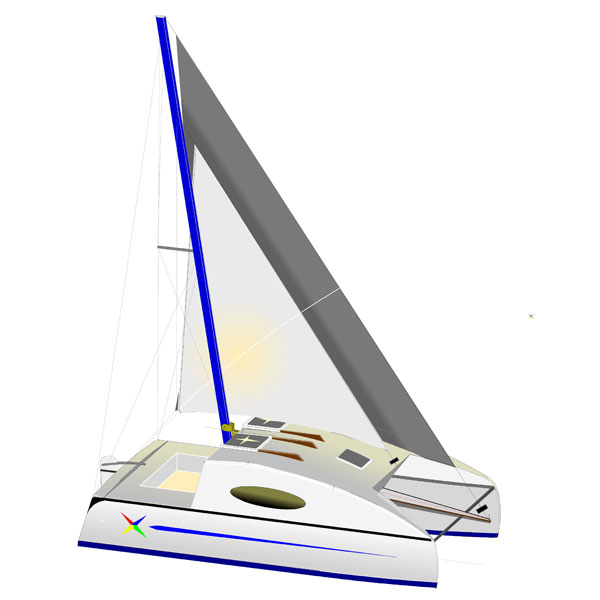

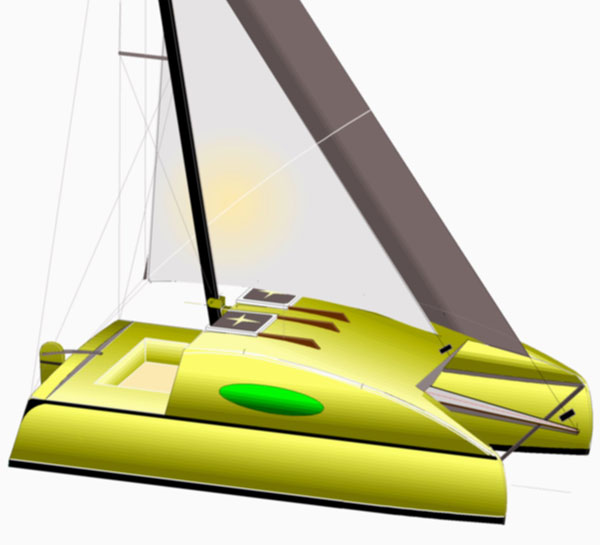

The ECO 520 is the next catamaran from my jigsaw series. The first was the DUO 480 C.
These are Study Plans. For full plans, click HERE
The clue is, that the hulls can be build laying flat on a table. Starting with the outward hull side.
To make boat building for a first time boat builder.

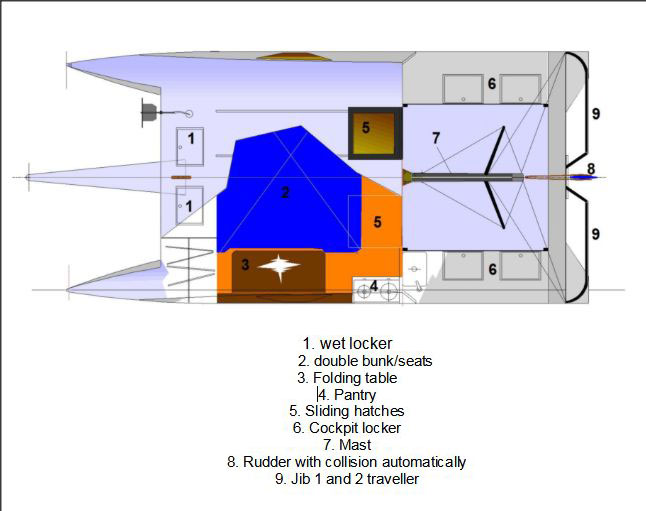

The boat has a jib rig. This means no high costs for a mast. The plan includes also an easy to build mast.
The double jib rig can be handled from the safety of the cockpit. The boat can be easy trailed to.
So the total costs of building the boat and the running costs can be kept to a minimum.

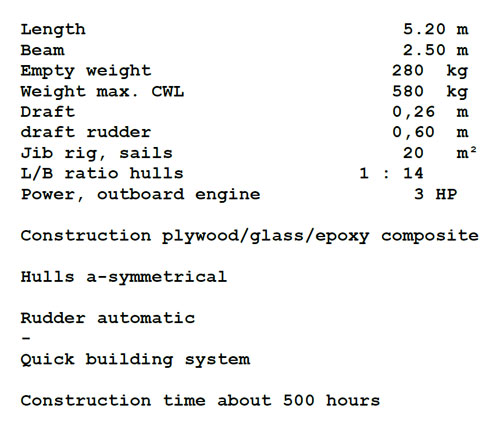

Additional Information
Dimensions: |
Metric |
Designer Name: |
Bernd Kohler |
Sail area (Imperial / Metric): |
215sf / 20sm |
Rig Type: |
Double Jib |
Rudder: |
Kick-up |
Length (range): |
16' - 23'11" / 4.88m - 7.29m |
LOA: |
17' 1" / 5.2m |
Length at Waterline: |
17' 1" / 5.2m |
Beam: |
8' 2-1/2" / 2.5m |
Hull Weight: |
200 - 999 lbs / 90.72 - 453.14kg |
Estimated Hull Weight: |
617lbs / 280kg |
Draft: |
12" - 35" / 30.48 - 91.23cm |
Unloaded Draft: |
2' / 60cm |
Weight Capacity: |
661lbs / 300kg |
Primary Material: |
Marine Plywood |
Method of Construction: |
Stitch and Glue |
Hull: |
Multihull |
Hull Type: |
Planing |
Hull Shape: |
Flat bottom |
Cabin: |
Cabin |
Power Source: |
Wind |
Motor: |
Outboard |
Built-in Floatation: |
Yes |
Trailerable: |
Yes |
Cartop: |
No |
Unit of Measure: |
Metric |
Instruction Manual: |
General Instructions and Sequence |
Lofting Required: |
No |
Recommended Experience Level: |
Intermediate |
Designer's Thoughts on Experience Level: |
Chuck Leinweber's suggestion |
Boat Type: |
Sailboat |
