16' Egret Runabout Plans
- SKU:
- SEL-16EGRET
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description

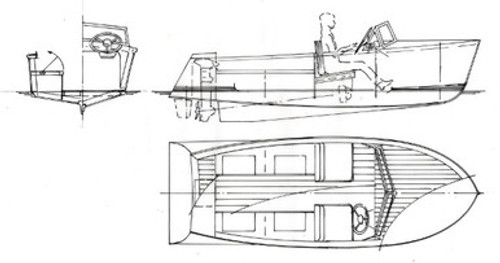

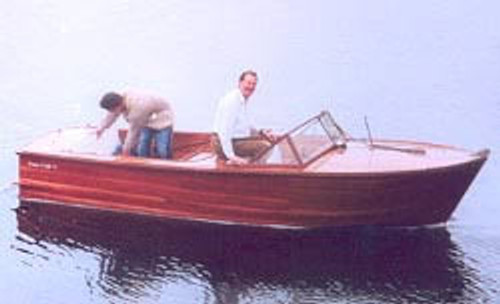

The Egret is a slightly simplified form of the Classic runabout - she has a plywood hull which can be overlaid with Mahogany veneer and teak decking to give a classic look. She has tumblehome aft and a 'V' bottomed hull with a single chine built over a computer faired framework. An outboard engine can be used but the plans show an inboard of around 20 hp. Seating is for 4 or 5 in two cockpits.
|
16' Egret Particulars |
||
| LOA | 16' | 4.88m |
| Beam | 6 1 1/2" | 1.87m |
| Hull Mid Depth | 2'7" | 0.79m |
| Draft | 1' 7 1/2" | 0.5m |
| Approx. Dry Weight | 950 lbs | 431 kg |
| Engine | Up to 20 hp inboard or 30 hp outbaord | |
| Hull Shape | V bottom single chine | |
| Construction Methods | Ply over frame | |
| Major plywood requirements for hull |
14 x 6mm sheets 2 1/2 x 9mm sheets 1 1/2 x 12mm sheets |
|
| Guidance Use | 4 adults | |
| Drawing/Design Package | + 5 x A4 instruction/spec sheets | |
| Additions and alterations included with the plans | Outboard mounting | |
