14' Peterborough Plans
- SKU:
- SEL-14PETERBOROUGH
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description

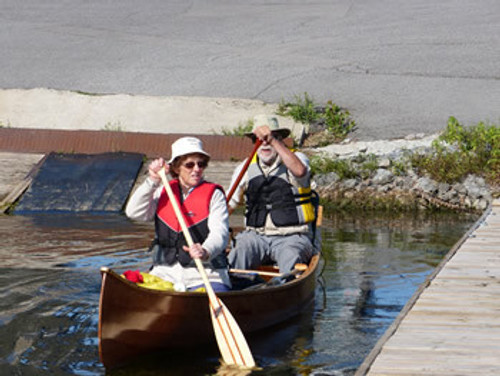

This is a 14’ version of our larger Peterborough design but in this case we have gone for a design with 7 planks per side. She still uses the simple stitch and tape method of construction and has seats for 2 crew. Midships depth is 12 1/2” (0.32m) and the tumblehome in her topsides makes her both easy to paddle and very stable.
|
14' Peterborough Particulars |
||
| LOA | 14' | 4.27m |
| Beam | 32 1/2" | 0.83m |
| Hull Mid Depth | 12 1/2" | 0.32m |
| Approx. Dry Weight | 42lbs | 19kg |
| Approx. Capacity | 535lbs | 243kg |
|
Hull Shape |
Multi-chine 7 planks per side with tumblehome | |
| Construction Method | Stitch and tape - moulds/jig also given for clinker ply | |
| Plywood Requirements | 4 sheets of 4mm | |
| Guidance Use | General purpose - 2 adults | |
| Drawing/Design Package | 4x A1 drawings + 6 x A4 instruction sheets | |
Related Products
15'7" Peterborough Plans
$68.00
The name ‘Peterborough’ was often used to describe any open Canadian type canoe but more especially those with a lightly rockered hull which had a moderate beam and some tumblehome. Our example...
Dart 14 Plans
$61.00
The sporty 14’ single kayak (now in it’s mark 2 version) has a beam of 24’’ and a ‘V’ bottomed soft chine shape giving plenty of stability with a very good tracking and low wetted surface...
Goshawk 14 Plans
$122.00
The 14’ Goshawk has emerged in the same way that the 16’ Goshawk did—by someone asking for a wider and deeper Skylark. What the client wanted was a small boat which was more than the normal...
Stornoway 14 Plans
$27.00 - $113.00
At last we have added a 14' version of our Stornoway design to our range of Dinghies & Dayboats - she has been much requested and we have taken the opportunity to base her construction on the...
Simplicity 14 Plans
$34.00 - $203.00
This handy pocket cruiser has been designed for a client who wanted an ultra simple and cheap sailing cruiser for estuary sailing and which would get him across the Channel. The construction could...

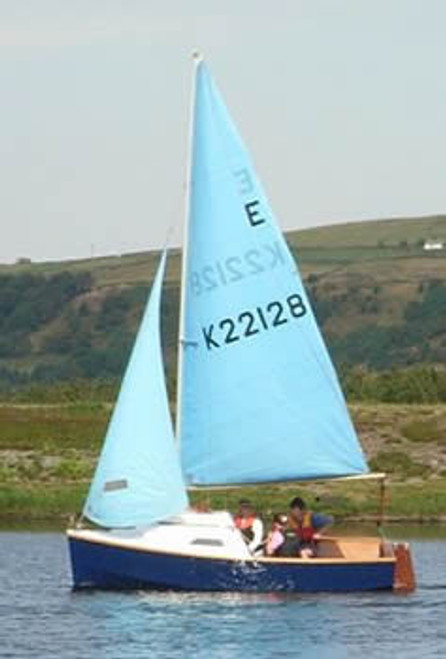

Lynx 14 Plans
$34.00 - $203.00
The Lynx 14 is a very modern pocket cruising boat designed to give comfortable over night sleeping accommodation in a short boat length. She has been designed for a client who intends to use her for...
Power 14 Plans
$122.00
The hull for this launch was originally based on our Power 16 model but instead of going for a simple flat bottom panel, we have used a 'V' bottom shape. Whilst this makes construction time a little...

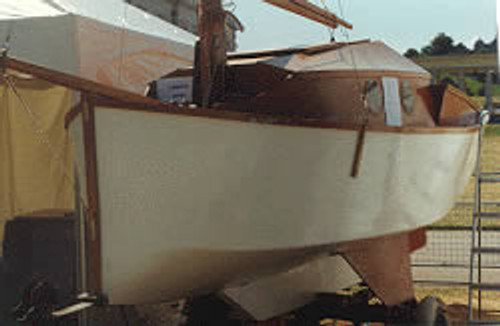

Heron 14 Plans
