Yole 475 Plans PDF
- SKU:
- JD-YOLE475-ID
- Availability:
- Available for download after checkout
Description
Yole 475 / 15.5

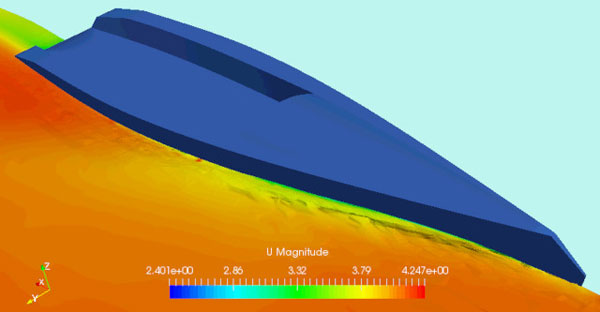

A rowing skiff with planing hull, optimize for light weight
- LOA 4.75 m x beam 0.86 m, water line 0.7 m
- Weight 40 kg
Full plans in PDF with 3D building guide.
5 sheets of ACX 1/5 or 1/4 – 5/6 mm plywood.
Simple lumber assembly for straight parts and stringers, and stich & glue epoxy joints for the hull.

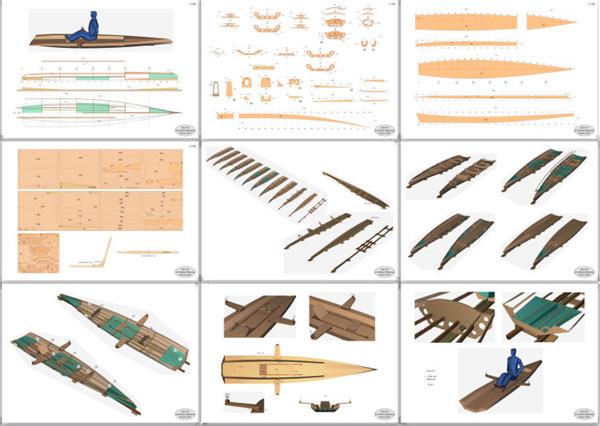

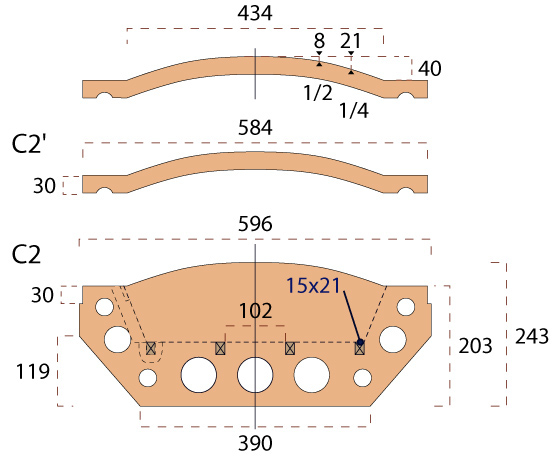

The plans details all the parts dimension, the parts nesting on plywood sheets, the simple building jig, a complete building sequence in 3D and some detail pictures.

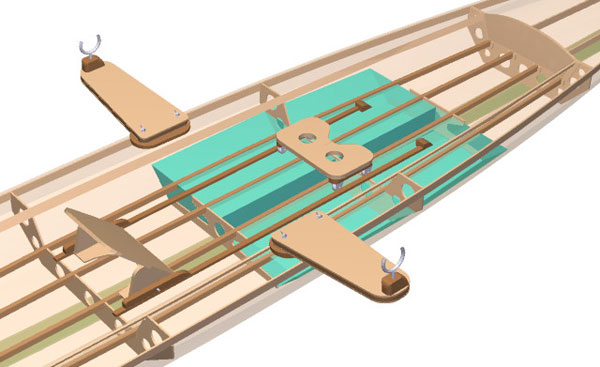

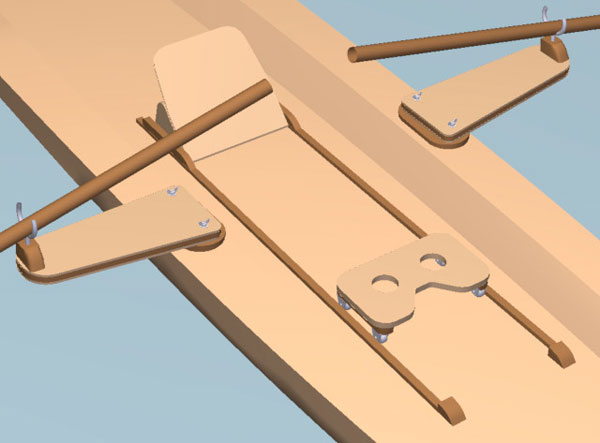

All parts included, sliding seat, adjustable footwell
