Venezia 525 Plans PDF
- SKU:
- JD-VENEZIA525-ID
- Availability:
- Available for download now
Description

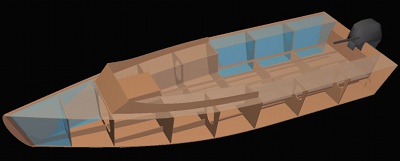

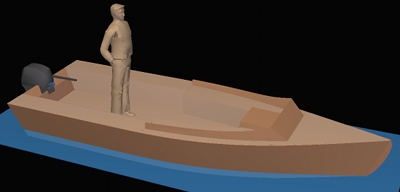

A classical motor launch based on a simple plywood epoxy semi-dory hull. Rear self-draining cockpit, a central siting place with protecting coamings, and a forward locker with a hatch.

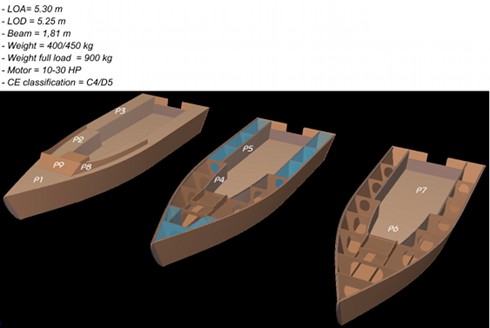

The shape of the bottom is given by a central backbone where the frames are fitted together.
9 sheets of ACX 3/8 and 4 sheets of ½ ACX plywood.

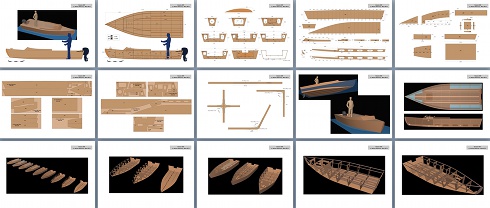

The plans detail all the parts and panels dimension, the parts nesting on plywood sheets, a complete building sequence in 3D.
