Silver 333 Plans
- LOA:
- 10'11"/3.33 m
- SKU:
- BCA-SILVER333-PA
- Availability:
- Your plans should arrive via email within 48 hours. The plans are in the form of a PDF file.
Description

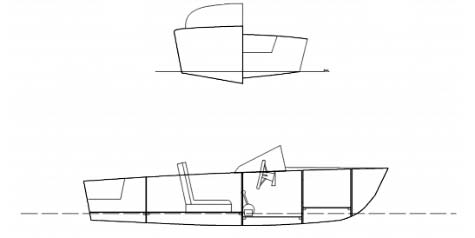

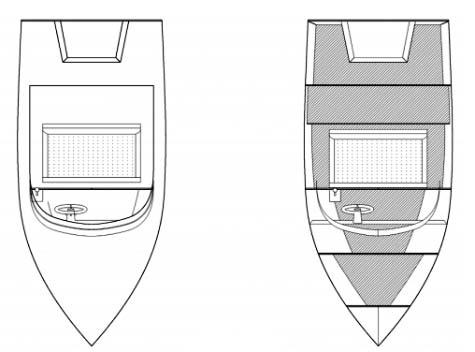

The SILVER 333 is a very small classical runabout for one or two people which may easily be transported on top of a mid-size car roof. Maximum suggested power of the motor is 15/20 HP, which is sufficient for planing. The bow of the boat acts as a tank and crashbox, while in the cockpit a double bottom is foreseen, to make the boat unsinkable and the cockpit self bailing. The construction method is a variant of the stitch and glue type and may be built by amateur builders with little experience. Fibreglass coating is foreseen only for the bottom so as to avoid affecting the upper works, which may be varnished.
View AllClose
Length 3.33m
Designer: Paolo Lodigiani
Chine hull, Plywood Construction
Building Skills: medium
deck beam 1.52m
displacement 80kg
draught 0.12m
displacement 80kg
draught 0.12m
PLANS
11 sheets A3
Building instructions and material list
Designer: Paolo Lodigiani
Chine hull, Plywood Construction
Building Skills: medium
deck beam 1.52m
displacement 80kg
draught 0.12m
displacement 80kg
draught 0.12m
PLANS
11 sheets A3
Building instructions and material list
Additional Information
Measurement: |
Metric |
Designer Name: |
Paolo Lodigiani |
Length (range): |
8' - 15'11"' / 2.44m - 4.85m |
LOA: |
10'11"/3.33 m |
Length at Waterline: |
9'10"/3 m |
Beam: |
4'11"/1,5 m |
Hull Weight: |
200 - 999 lbs / 90.72 - 453.14kg |
Estimated Hull Weight: |
209 lb/ 95 kg |
Draft: |
Under 6" / 15.24cm |
Unloaded Draft: |
5"/0,13 m |
Weight Capacity: |
364 lb/165 kg |
Primary Material: |
Marine Plywood |
Method of Construction: |
Stitch and Glue |
Hull: |
Monohull |
Hull Type: |
Planing |
Hull Shape: |
V bottom |
Power Source: |
Internal Combustion |
Motor: |
Inboard |
Horsepower Rating: |
15/25 HP |
Built-in Floatation: |
Yes |
Trailerable: |
Yes |
Cartop: |
No |
Unit of Measure: |
Metric |
Instruction Manual: |
General Instructions and Sequence |
Lofting Required: |
No |
Recommended Experience Level: |
Beginner |
Designer's Thoughts on Experience Level: |
Small project, easy shapes to develop |
Boat Type: |
Powerboat |
