Naut 420 Plans PDF
- SKU:
- JD-NAUT420-ID
- Availability:
- Available for download now
Description

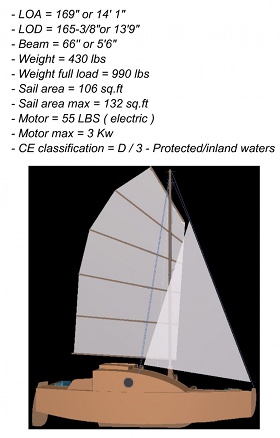

14 foot simple cruising sailboat for two overnight or three for a day cruise, design for protected or inlands waters.

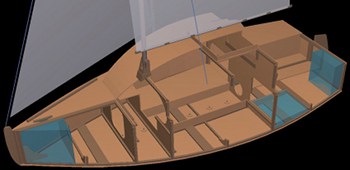

A classic design pocket sailboat with 2 berths and a small cockpit.
11 sheets of ACX 3/8" plywood.
I recommend using epoxy, without glass fiber, on the bottom of the hull, chines and all edges.

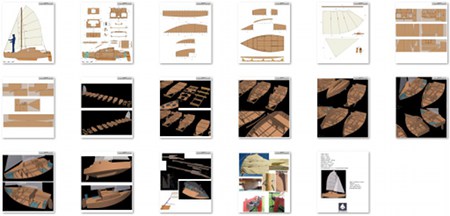

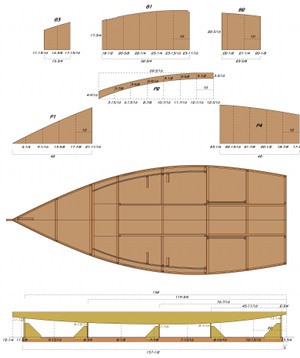

The plans detail all the dimensions of the parts, how the parts nest on plywood sheets, a complete building sequence in 3D and some detail pictures.
The junk rig sail is a major part of the design, with a hinged batten system that improves performance to windward.
