Naut 395 Plans PDF
- SKU:
- JD-NAUT395-ID
- Availability:
- Available for download now
Description
Naut395 Metric
LOA 3.95 m – 13‘
Beam 1.68 m – 5.5‘
Sail Area 5.7 / 8 m² - 62 / 86 Sq.Ft

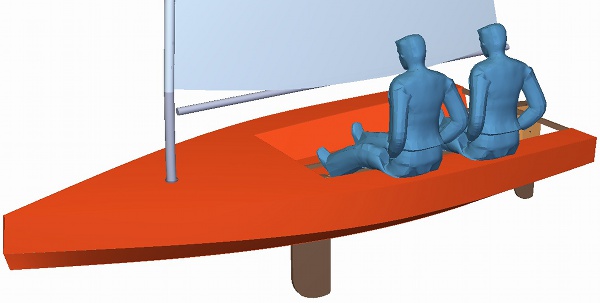

A bigger Naut 350 for two. A fast planning hull with Imoca lines
9 sheets of ACX 6 mm, 1/4 plywood.
Simple stitch & tape epoxy building, with glass fiber on the hull, chines and all edges.

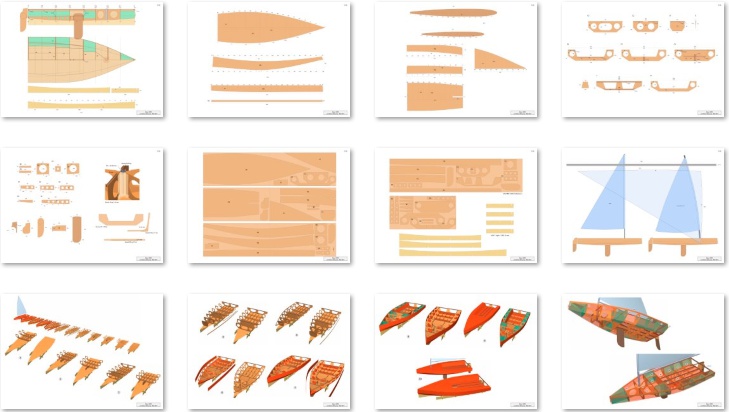

The plan details all the parts and hull panels, the parts nesting on plywood sheets, and a complete building sequence in 3D.
Laser Radial rig / Simple Bermudian sail, or whatever you like.

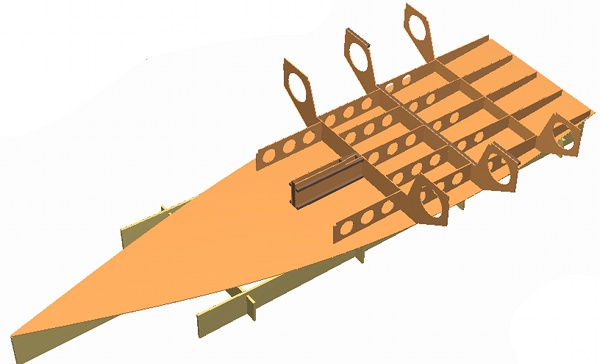

Upright assembly on a jig, all dimensions are given.

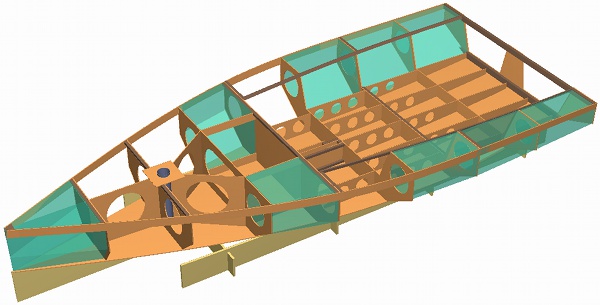

Light cockpit stringers to support two adults and mast post reinforcements
Virtual towing tank, here at 7 kn, showing the planning waves system
