Naut 350 Plans PDF
- SKU:
- JD-NAUT350-ID
- Availability:
- Available for download now
Description

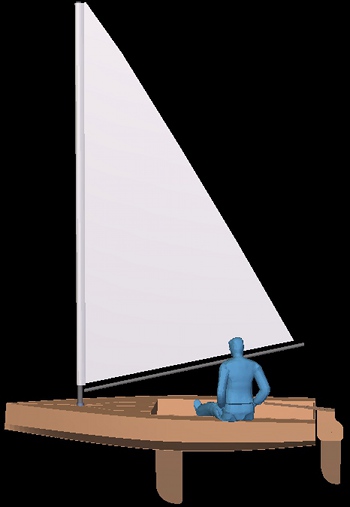

A friend asked me to draw a contemporary fast sailing dinghy. The hull shape has been tested in a VPP program.
6 sheets of ACX 5 mm, 1/5 plywood.
Simple stitch & tape epoxy building, with glass fiber on the hull, chines and all edges.

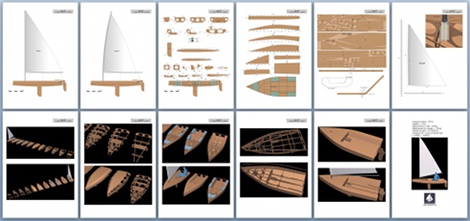

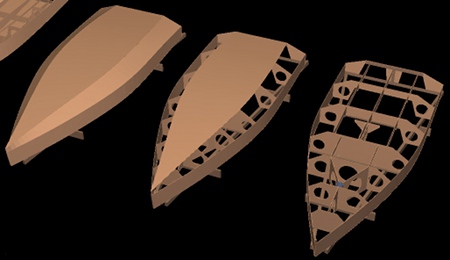

The plan details all the parts and hull panels, the parts nesting on plywood sheets, and a complete building sequence in 3D.
Laser 4.7 rig / Simple Bermudian sail.
LOA 3.5 m â 11.5â
Beam 1.4 m â 4.6â
Sail Area 4.7 / 6 m² - 52 / 66 Sq.Ft
