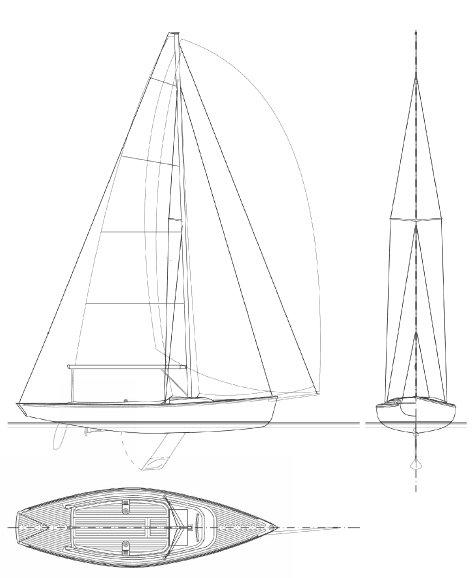

Daysailer 24 Plans
- LOA:
- 24'/7.31 m
- SKU:
- BCA-DAYSAILER24-PA
- Availability:
- Your plans should arrive via email within 48 hours. The plans are in the form of a PDF file.
Description
Lenght 7.31m
Designer: Paolo Lodigiani and Matteo Costa
Round hull, Strip-Planking construction
Building Skills: medium
For study plans click HERE
LOA: 7.313 m
beam: 1.938 m
Disp: 1300 kg
sail area:
Mainsail 18.00 m2
jib 9.00 m2
.
Hull ROUND
rigs: Marconi Sloop
Design: Strip Planking
Additional Information
Measurement: |
Metric |
Designer Name: |
Paolo Lodigiani |
Sail area (Imperial / Metric): |
260 sq.f./24 m2 |
Rig Type: |
Sloop |
Ballast Type: |
Fixed |
Ballast Weight: |
771lb/350 kg |
Keel Type: |
Centerboard |
Rudder: |
Kick-up |
Length (range): |
24' - 35'11" / 7.32m - 10.95m |
LOA: |
24'/7.31 m |
Length at Waterline: |
19'8"/6.02 m |
Beam: |
7'3"/2,2 m |
Hull Weight: |
Over 1000 lb / 453.59kg |
Estimated Hull Weight: |
2866 lb/1300 kg |
Draft: |
12" - 35" / 30.48 - 91.23cm |
Unloaded Draft: |
2'4"-4'5"/0.75-1.34 m |
Number of Occupants: |
4-6 |
Weight Capacity: |
859lb/390 kg |
Primary Material: |
Solid Wood |
Method of Construction: |
Strip Planked |
Hull: |
Monohull |
Hull Type: |
Displacement |
Hull Shape: |
Round bottom |
Cabin: |
Cabin |
Power Source: |
Wind |
Motor: |
Outboard |
Horsepower Rating: |
6 HP |
Built-in Floatation: |
Yes |
Trailerable: |
Yes |
Cartop: |
No |
Unit of Measure: |
Metric |
Instruction Manual: |
General Instructions and Sequence |
Lofting Required: |
No |
Recommended Experience Level: |
Advanced |
Designer's Thoughts on Experience Level: |
No |
Boat Type: |
Sailboat |
