Clyde 18 Plans
- SKU:
- SEL-CLYDE18
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description
The Clyde 18 is a modified Power 1.3 Mk 1 design. The hull shape is a simple deadrise type, single chine 'V' bottomed. The hull is parallel sectioned aft of the wheelhouse which means that she can be easily lengthened or shortened.
Construction is for ply over a simple slotted ply framework - she can also be built using pure stitch and tape techniques and the panel/plank shapes are given for this.
The Clyde 18 can be fitted out in a number of ways - as drawn she has a self draining cockpit with an open backed wheelhouse and forecabin with 2 bunks and space for a small Porta Potti.
|
Clyde 18 Particulars |
||
| LOA | 17' 11" | 5.45m |
| Beam | 7' 10" | 2.39m |
| Hull Mid Depth | 3' | 0.91m |
| Draft | 1'7" | 0.48m |
| Approx. Dry Weight incl. engine and fit-out | 1433 lbs | 650 kg |
| Engine | 10-100 hp outboard | |
| Hull Shape | Single chine V bottom | |
| Construction Methods | Ply over frame and Stitch & Tape | |
| Guidance Use | Coastal/Channel | |
| Drawing/Design Package | 5 x A1 drawings + 8 x A4 instruction/spec sheets | |
| Additions and alterations included with the plans | ||
Related Products

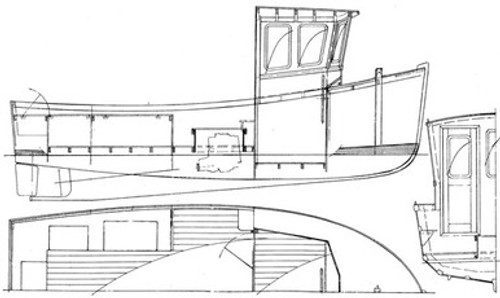

Skellig 18 Plans
$27.00 - $236.00
The Skellig 18 is based on our Skellig 26 workboat/fishing boat. She has a double chined V bottom shape with generous beam making her a very stable working platform for all kinds of duties. The...

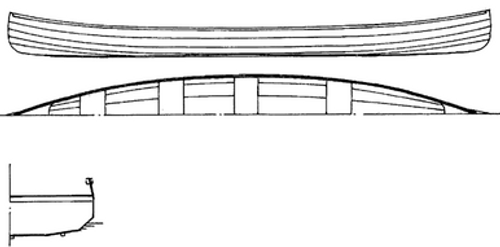

Guide 18 Plans
$88.00
The Guide 18 is a large open canoe for carrying a crew of up to 5 people and/or gear safely over long distances. She has a well rounded hull shape and uses 5 planks per side. The hull has tumblehome...
Galway 18 Plans
$34.00 - $182.00
The Galway 18 has been designed as a replacement for a client’s ageing Lysander and incorporates a number of his thoughts and ideas on the design of a safe cruising boat of this size. The main...
Micro 18 Plans
$34.00 - $304.00
This project presents the amateur builder with little more difficulty than building an Enterprise dinghy. She is of multi-chine configuration with pre-shaped bottom, hog and bulkheads for quick...

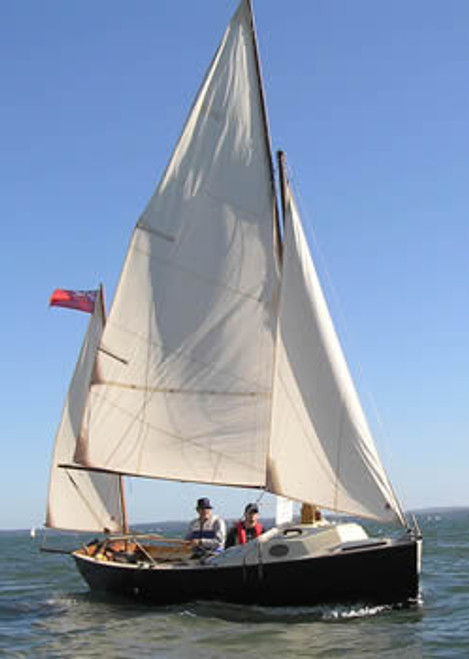

Highlander 18 Plans
$27.00 - $236.00
The Highlander 18 has been developed for the sailor or fisherman wanting a boat that he can use comfortably for estuary and coastal work. Points taken into her design are easy trailability (hence she...

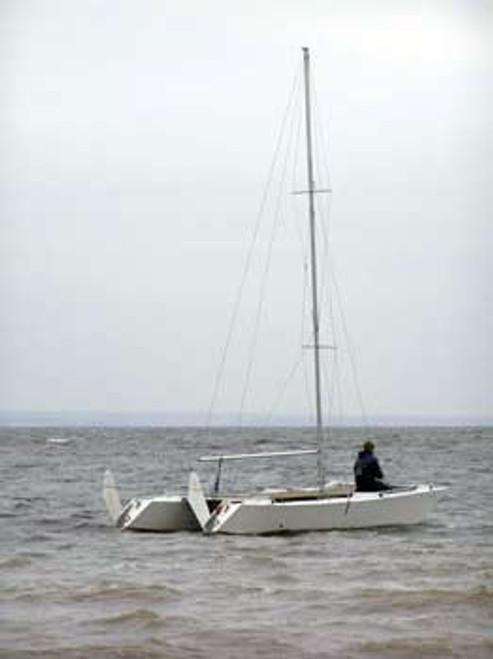

18' Hawk Plans
