Acorn Plans Download
- LOA:
- 21' / 6.4m
- SKU:
- WOODS-ACORN-ID
- Availability:
- Available for download after checkout
Description
Click HERE to download Free Study Plans
About Woods Downloadable Plans

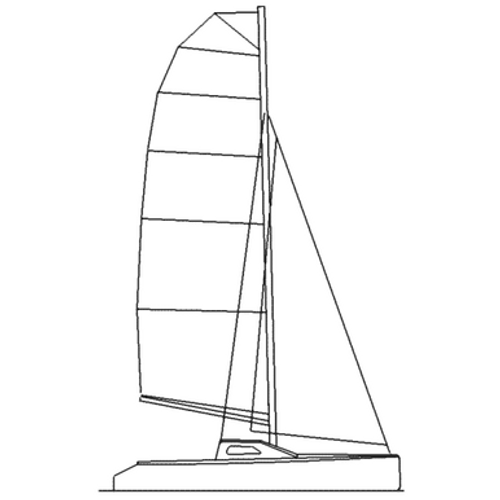

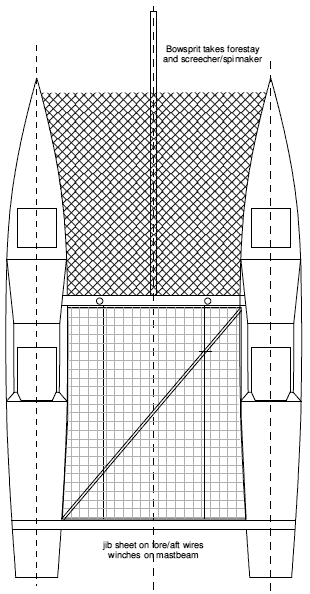

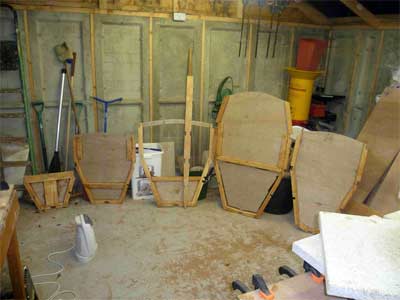

The Acorn is a 21ft lightweight plywood minimum fast cruiser that has been kicking around for nearly 20 years but only recently have plans been drawn. Some parts, eg boards, rudders, spars, can come from large beach cats (ie Hobie 18 or larger). The rig shown is the optional racing rig which is only suitable for experienced sailors in lightwind areas. Smaller rigs are available, see the study plan
Specifications:
Additional Information
Measurements: |
Metric |
Designer Name: |
Richard Woods |
Sail area (Imperial / Metric): |
220sqft-320sqft / 21-28sqm |
Rig Type: |
Sloop |
Keel Type: |
Daggerboard |
Rudder: |
Kick-up |
Length (range): |
16' - 23'11" / 4.88m - 7.29m |
LOA: |
21' / 6.4m |
Length at Waterline: |
6.35m 20ft10in |
Beam: |
3.8m 12ft6in (demountable) |
Hull Weight: |
200 - 999 lbs / 90.72 - 453.14kg |
Estimated Hull Weight: |
400kgs 900lbs |
Draft: |
6" - 11" / 15.24 - 30.27cm |
Unloaded Draft: |
.19m-1m 8in-3ft3in |
Number of Occupants: |
1-4 |
Weight Capacity: |
400kgs 1000lbs |
Primary Material: |
Marine Plywood |
Method of Construction: |
Stitch and Glue |

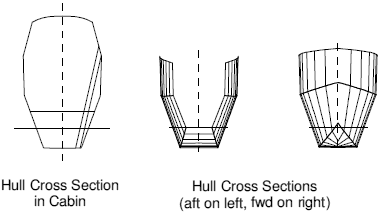

Hull: |
Multihull |
Hull Type: |
Planing |
Hull Shape: |
Flat bottom |
Cabin: |
Cabin |
Power Source: |
Wind |
Motor: |
Outboard |
Horsepower Rating: |
2.5hp |
Built-in Floatation: |
Yes |
Trailerable: |
Yes |
Cartop: |
No |
Unit of Measure: |
Metric |
Instruction Manual: |
Step-by-Step Instructions |
Lofting Required: |
No |
Recommended Experience Level: |
Intermediate |
Designer's Thoughts on Experience Level: |
a simole chined boat but still a big project for a first time builder |
Boat Type: |
Sailboat |
