26' Ijssel Launch Plans
- SKU:
- SEL-26IJSSEL
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description
It had to happen of course - having designed 21' and 30' Ijssel launches, someone would want something in between and here it is. The hull is very much of the Ijssel high volume stable model with plenty of space for whatever internal arrangement you need at this length. In this set of drawings though, the client asked for a simple forward cabin. This gives convenient shelter to sit and lie in or to arrange a small wc. The cabin could easily be extended and could of course be used on the 21' and 30' Ijssels.
Like her sisters, construction is for Cedar strip plank and whilst the drawings give details for diesel machinery installation, she could take steam or electric.
|
26' Ijssel Particulars |
||
| LOA | 25'10" | 7.87m |
| Beam | 8' | 2.43m |
| Hull Mid Depth | 3'6" | 1.07m |
| Draft | 2' 7 1/2" | 0.8m |
| Maximum Headroom | 5'5" | 1.65m |
| Approx. Dry Weight | 3750 lbs | 1700 kg |
| Engine | 25-35 hp inboard | |
| Hull Shape | Round bilge | |
| Construction Methods | Strip plank | |
| Major strip wood requirements for hull | 3280' of 7/8" x 1 1/4" (1000m of 22 x 33mm) WRC | |
| Guidance Use | Coastal | |
| Drawing/Design Package | 8 x A1 drawings + 5 x A4 instruction/spec sheets | |
| Additions and alterations included with the plans | ||
Related Products
30' Ijssel Launch Plans
$41.00 - $405.00
An American client wanted to produce a replica of the African Queen and saw our Ijssel launch as offering a craft of similar style - so we increased her length to 30' and beam to 8' (later we were...
21' Ijssel Launch Plans
$34.00 - $358.00
This launch has been designed for diesel propulsion (10-15 hp) but she can also take steam or electric propulsion. The layout drawn for her is a simple open thro' plan with no obstructing bulkheads...
26'8" Michelle Launch Plans
$41.00 - $540.00
Michelle is a sister ship to Etna. The main difference is in her bow shape which is more raked - the aft sections and transom are the same as Etna. She has an open internal layout similar to Etna's...
Fanny the Fantail Launch Plans
$27.00 - $169.00
We were asked to design "Fanny" for the Boatman magazine and the construction of her hull was covered in issues 30 to 37. Since then several have been built both in plywood and in steel (by Peter...
16' Felix Launch Plans
$34.00 - $243.00
Our Felix 13â was lengthened to 15â and the beam increased to accommodate batteries for electric power and now this design has been lengthened a further 12â and the beam increased by 6â and...

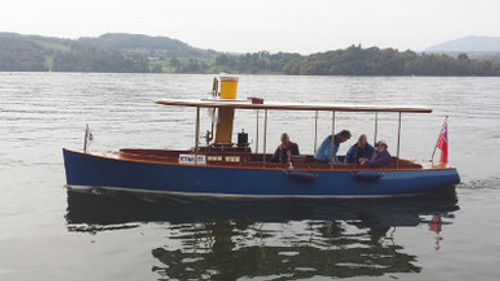

26'8" Etna Launch Plans
