19'6" Lark Dory
- SKU:
- SEL-19.6LARKDORY
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description
19’6’’x 5’8’’x 11’’ (min.). May be built in two halves and bolted together as a fishing/motor dory or as a sailing dory with or without the cubby/cabin. Pre-shaped side hull panels are fastened to the frames upside down, stringers added to the outside (acting as rubbing strakes as well) and then the bottom panel is added. She has an optional salt water ballast tank. The standard rig is a simple double unstayed sprit boom rig with all fittings kept to a minimum. The plans also show a conventional single sprit rig with jib and centreboard arrangement.
Plans also include details for a 7' beam version and details for a single masted sprit rig and pivoted centreplate - below.
|
19'6" Lark Dory Particulars |
||
| LOA | 19'6" | 5.95m |
| Beam | 5'8" and 7' | 1.73m and 2.13m |
| Hull Mid Depth | 2'1" | 0.64m |
| Draft | 11"/2'11" | 0.28/1.19m |
| Sail Area | 120 sq.ft | 11.16 sq.m |
| Approx. Dry Weight | 772 lbs | 350 kg |
| Hull Shape | Flat bottom single chine - dory type | |
| Construction Methods | Ply over frame | |
| Major plywood requirements for hull/deck/cabin | 9 sheets of 6mm and 5 sheets of 9mm plywood | |
| Guidance Use | Up to 6 adults but usually with 4 | |
| Drawing/Design Package | 5 x A1 drawings + 7 x A4 instruction sheets | |
| Additions and alterations included with the plans | Centreboard alternative Sprit main and jib rig |
|
Related Products
Highlander 19'6" Plans
$27.00 - $240.00
This boat is a stretched version of the Highlander 18 for a client who wanted the biggest boat that he could comfortably trail extensively behind a medium sized family saloon without a lot of effort...

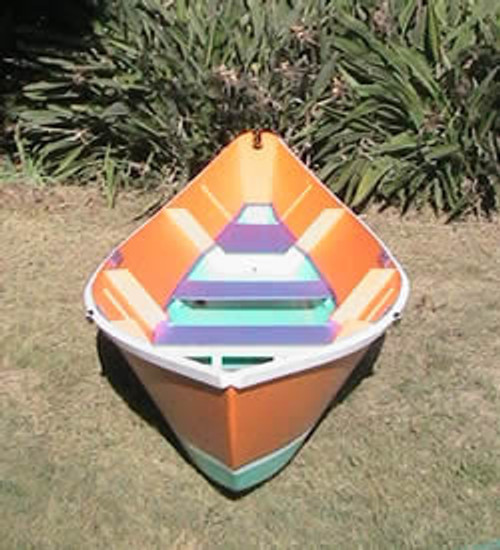

18' Exe Dory
