19' Sailing Dory Plans PDF

Note: These plans consist of 4 large drawings. The instant download is a single PDF file which produces 4, 24" x 18" pages, These files can be taken to a Kinkos, Office Max or any commercial printer to have prints made as a modest cost. To save $25 and postage costs choose the download option by ordering on this page. To order printed plans click HERE.

******

Who doesn't like these big single chine dories! They're easy to build, they look cool in the water and they make ideal recreational craft or no-nonsense workboats. This has been one of our most popular plan sets over the years and is a classic which can be built entirely traditionally, or with lightweight ply and epoxy.

This 19 footer makes a great camp cruiser, and I know from owning one for years that it'll haul a LOT of gear. Its really a bigger boat than the plans imply and theres space for two rowing stations, plus piles of gear. This boat would be a good choice for camp-cruising the islands and campgrounds up the West Coast Marine Trail from Olympia north, or a summer in the warm waters of Desolation Sound. The interior can be all tricked out for sleeping aboard, which is often a nice option to sleeping ashore. A canvas cover can be rigged for weather and removable thwarts and Therma-Rest seats and pads add to the comfort factor. See the “canvas coverings” article under “builder resources” for more ideas.

Speed is not one of the prime characteristics of the dory but once up to hull speed it will ghost along, even loaded, with a minimum of effort. Don't expect to average much more than three knots under oars, and for those who enjoy the quiet pleasures of sailing, the 78 square foot rig will be fun and manageable. The rig matches the traditional lines of dory and the mast and sprit is short enough to fit inside the boat for transport. It gains stability with loading and this proven design tends to handle big water with casual proficiency.

Human and sail powered cruising is still the most satisfying, and trips done this way become memorable accomplishments, but for those who want a bit more power, a choice of small outboard motors can also be clamped over the transom or shoehorned into waterproof wells inside the hull. Inboard wells locate the motor nearer the center of the hull to provide a smooth transfer of power to the water, and also prevent the hobby-horsing so common with transom hung motors in rough water. For an even quieter powered experience try an electric trolling motor inside a well, with an extra fully charged backup battery function as useful ballast. For drifting, you can motor upstream until the battery weakens then drift back down to the put-in, eliminating the need for all the hassle of a shuttle vehicle. The hull has minimal rocker which helps it slip through the water more efficiently, and is quite shallow draft with the rudder removed.

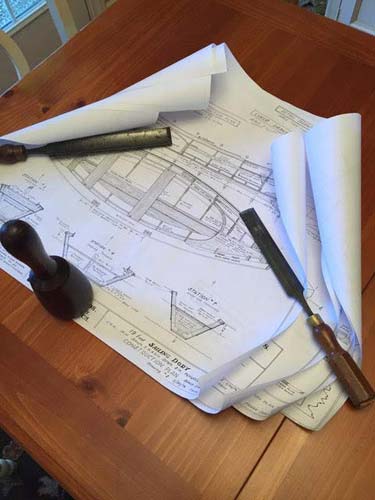

The four sheets of traditional Frank Davis plans are almost suitable for framing and the plans as drawn show a nice combination of ply/epoxy construction and traditional, so each builder can modify the boat to suit individual needs. I always encourage builders to customize their boats to suit their own needs, and builders are invited to email to discuss ideas. Build out as a mini-yacht with a small hard cabin for shelter or keep it open and simple. Build it with or without the centerboard and rudder and add those later, or do it all at once. Sail rig details include specs for running and standing rigging, centerboard and rudder. Its probably not a car-topper but it could certainly be a truck topper with a stout rack, and its one of the safest designs for family recreation, and these dories always seem to have good resale value.
