Stornoway 12 Plans
- SKU:
- SEL-STORNOWAY12
- Availability:
- Printed plans shipped and PDF plans emailed from Selway Fisher
Description
Second in what will become a classic range of craft is the Stornoway 12. She has 6 planks per side giving her a lovely round hull. The standard drawings give the plank shapes for stitch and epoxy construction but as with all our designs, we can furnish the builder with mould shapes for clinker/ ply or strip planked construction. The stitch and epoxy method is definitely the quicker and easier method and will produce a strong lightweight hull.We have given her a high peaked gaff rig which keeps the spar lengths down and which will not twist off at the head in the same way as the lower peaked gaff rig.
She has plenty of internal space with side benches and she can be built as either a rowing or a rowing/sailing craft and would be ideal for family sailing. She will take the sprit or alternative lug rigs of the Highlander 12 and could be fitted out with a fore deck area.
|
Stornoway 12 Particulars |
||
| LOA | 12'1" | 3.67m |
| Beam | 5' | 1.53m |
| Hull Mid Depth | 1' 6 1/2" | 0.47m |
| Draft | 6"/3'3" | 0.16/1m |
| Sail Area | 78 sq.ft | 7.3 sq.m |
| Approx. Dry Weight | 135 lbs | 62 kg |
| Hull Shape | Multi-chine with 6 planks per side | |
| Construction Method | Stitch and tape - mould/jig given for clinker ply | |
| Major plywood requirements for hull | 5 x sheets of 6mm exterior or marine plywood | |
| Guidance Use | 3 adults rowing/motoring - 2 adults sailing | |
| Drawing/Design Package | 6 x A1 drawings + 8 x A4 instruction sheets - 3 rigs - gunter main with jib, gaff main with cutter rig on bowsprit and balanced lug rig with unstayed mast. | |
Related Products
Stornoway 14 Plans
$27.00 - $113.00
At last we have added a 14' version of our Stornoway design to our range of Dinghies & Dayboats - she has been much requested and we have taken the opportunity to base her construction on the...

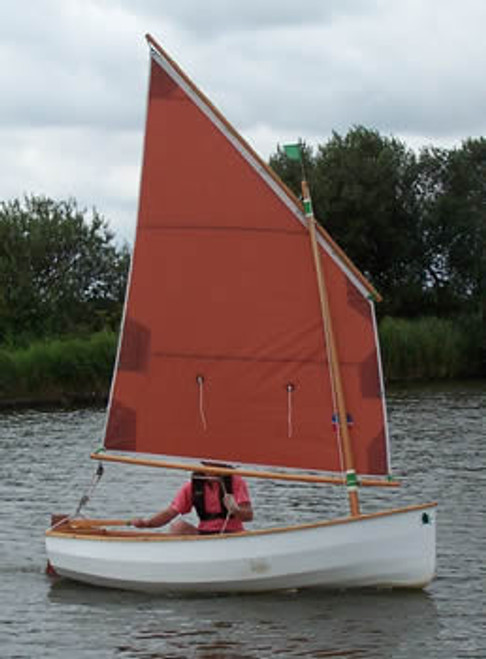

Stornoway 9 Plans
$88.00
The Stornoway 9 is the first of a new class of dinghies which incorporate firm bilges and moderately full transoms needed to carry loads safely and to give good sailing qualities without dragging...
Stornoway 16 Plans
$27.00 - $196.00
The Stornoway 16 has been designed for Walt Scherf of Oregon USA and continues the lovely rounded lines of the Stornoway family with their firm bilges flowing into an attractive and not too deep...
Stornoway 16 Plans Strip Plank Supplement
$41.00
Note: This supplement lets you build the Stornoway 16 as a strip plank boat rather than as multichine S&G or lapstrake. The plans for the Stornoway 16 are needed as well...
Waterman 12 Plans
$61.00
This is a new design for 2001 - we were asked to reduce the length of the Waterman 13 by a foot so that she could be made in 2 boltable halves and fitted into the back of a van for transporting to...

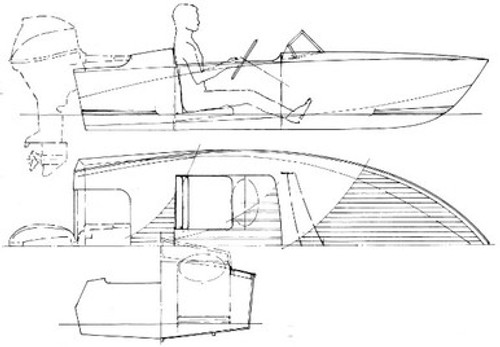

12' Taw Plans
