Katta 545 Plans PDF
- SKU:
- JD-KATTA545-ID
- Availability:
- Available for download now
Description

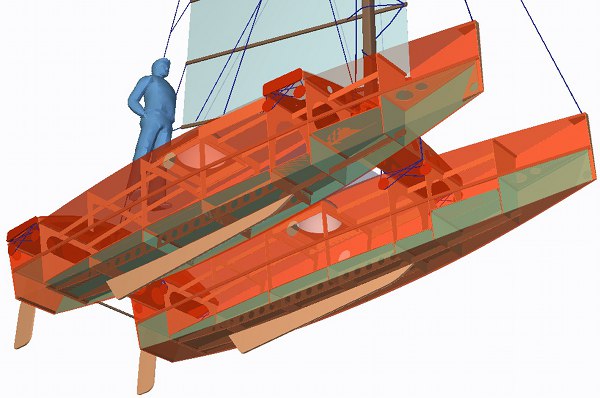

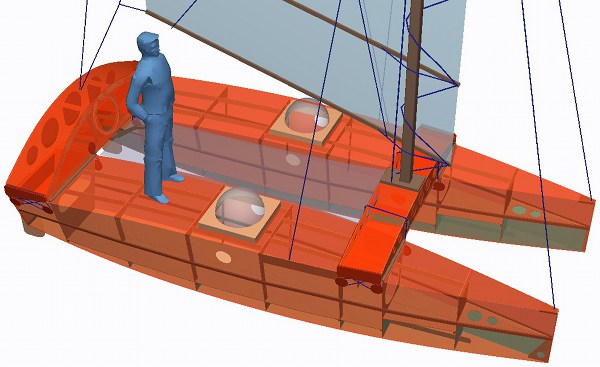

A pocket cruiser catamaran for two to four, with flat bottoms inspired by the genius Berqueâs twin M5.

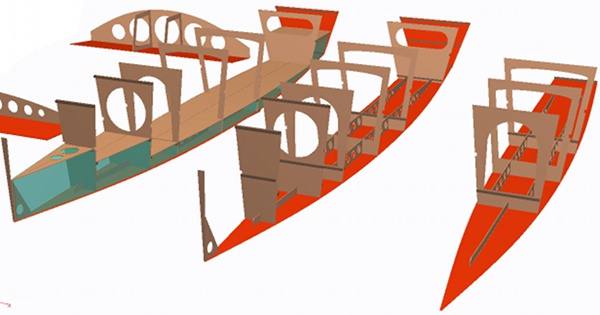

Stich and glue building on light frames and bulkheads. A large rear beam and a mast float should help in case of capsize. Each hull has a large sleeping place and sitting headroom.
26 sheets of 6mm - 1/4 ACX plywood.

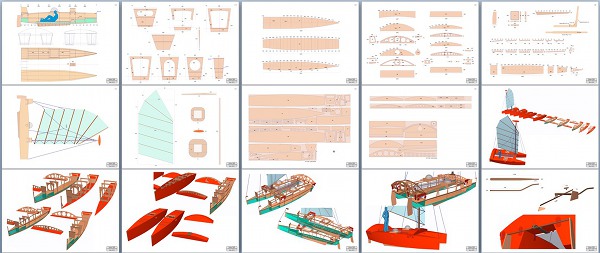

The plans detail all the parts and panels dimension, the parts nesting on plywood sheets, the junk rig and sail, and a complete building sequence in 3D.
here
18â x 8â â 575 Lbs.
Sail area 15 m² 162
Sq.Ft.
