Thalas 16 Plans

LOA:
16'/4.88 m
SKU:
BCA-THALAS16
Availability:
These plans are in the form of a PDF download. Your plans should arrive via email within 48 hours
$78.00

Description

The length of the American Whitehall of the 19th century was between 13' and 23'. The 16' was the most typical length and the boats were built for 2 or 3 rowers. As with the THALAS 13', also in this case the classical boat has been re-elaborated to make the design of our boat coherent with the different method of construction, but the seating arrangement of the rowers has been maintained and the boat is also suitable for one, two or three rowers. It is a fast boat, easy to handle and pleasant to sail. We have also foreseen a centreboard, thanks to which - although the boat was studied for rowing and the sail had just an auxiliary function - performance with a sail is satisfactory, also when sailing close to the wind, due to the fine waterlines and low weight. Obviously, stability is different from that of a real sailing dinghy and so the sail has a smaller size so that it may also be kept with relatively strong winds. The construction of the THALAS 16' is simple and fast.



Length 4.88m
deck beam 1.25m
displacement 45/50kg
sail area

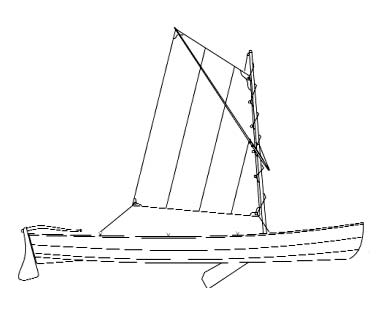

sprit sail 4.00 m2

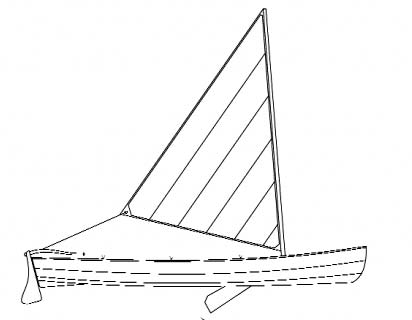

bermuda sail 3.25 m2

Designer: Paolo Lodigiani
Chine hull, Stitch&Glue construction
Building Skills: amateur

View AllClose

Additional Information

Measurement:
Metric
Designer Name:
Paolo Lodigiani
Sail area (Imperial / Metric):
35 sqf/3.25 m2
Rig Type:
Sprit
Keel Type:
Centerboard
Rudder:
Kick-up
Length (range):
16' - 23'11" / 4.88m - 7.29m
LOA:
16'/4.88 m
Length at Waterline:
15'1"/4.59 m
Beam:
4'1"/1.4 m
Hull Weight:
85 - 199 lbs / 38.56 - 90.27kg
Estimated Hull Weight:
150 lb/68 kg
Draft:
Under 6" / 15.24cm
Unloaded Draft:
4"-1'7"/0.10-0.50 m
Weight Capacity:
462 lb/210 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Monohull
Hull Type:
Displacement
Hull Shape:
V bottom
Power Source:
Human, Wind
Built-in Floatation:
No
Trailerable:
Yes
Cartop:
Yes
Unit of Measure:
Metric
Instruction Manual:
General Instructions and Sequence
Lofting Required:
No
Recommended Experience Level:
Beginner
Designer's Thoughts on Experience Level:
No
Boat Type:
Sailboat
