Micro Camper Cruiser Plans PDF

Write a Review
available for download after checkout


Click HERE for a Sail Rig Supplement for this boat
To download free sponson plans for this boat click HERE

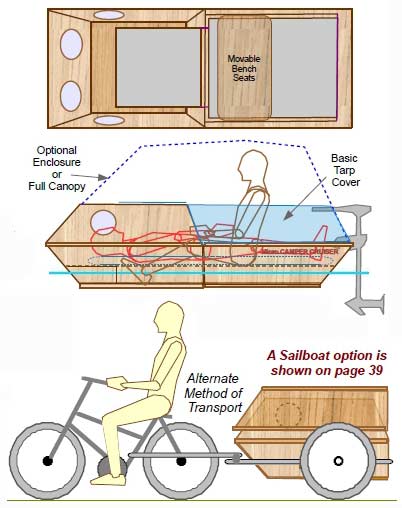

The idea for the Micro CAMPER CRUISER is the designer's desire for a portable overnight boat that fits in his car. It includes an ample beam, great freeboard, generous volume, seating for two, and safety buoyancy. It is sturdy, easy to build, quite portable and utilizes a standard trolling or small gas motor.

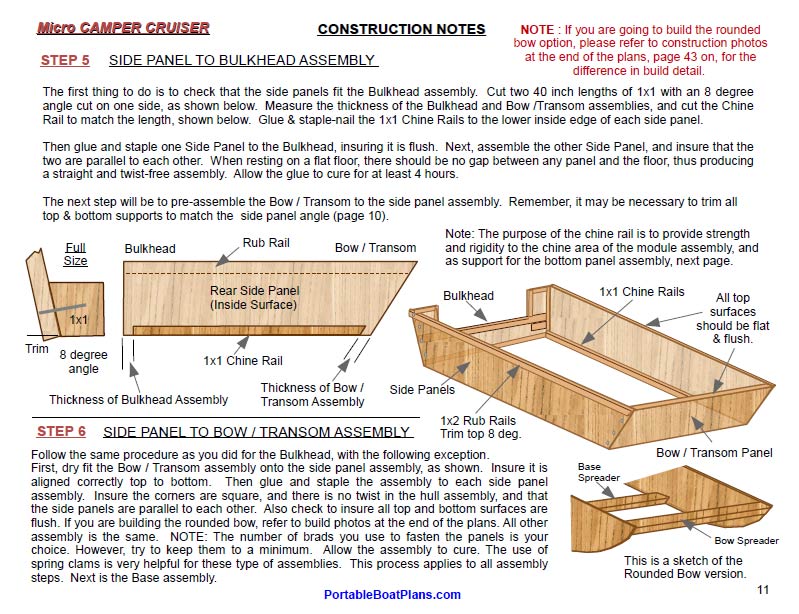

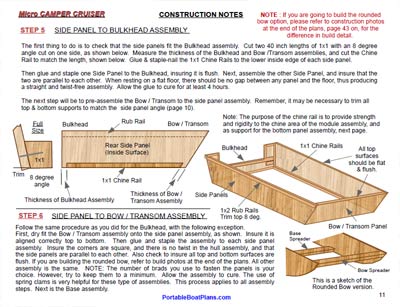

To have strength and yet be lightweight, the plans use some non-traditional methods of assembly, specifically the " Tape & Glue" construction process developed and incorporated by the designer. This provides a durable, yet truly portable, finished boat, and the building process is easily mastered by the home handyman and amateur boat builder.

As a result, only hand tools, a jig-saw, a power drill and a large carpenters square, scissors, and tape measure are all that will be required throughout the assembly process.

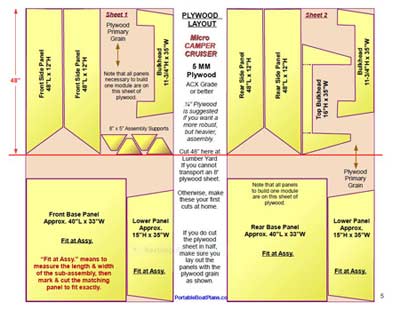

Be selective in your choice of materials. Use plywood that is preferably exterior rated. Marine Plywood is very expensive, so the use of ACX Grade is recommended, but be choosy. It is important to note, the final choice of materials is the decision of the builder. We have made specific recommendations, but if the builder has previous experience with different methods and materials, that is their choice, and we respect that decision.

Certainly, minor changes in design are encouraged, to provide a 'custom' boat to satisfy a builders specific needs. We do not make changes to the drawings. This would be up to the individual builder, and their responsibility.

Also, it is very important that none of the basic design parameters be drastically modified, as this may adversely affect overall boat safety or performance.

Seating choice is also up to the builder. I have folding seat plansavailable for free on the website.

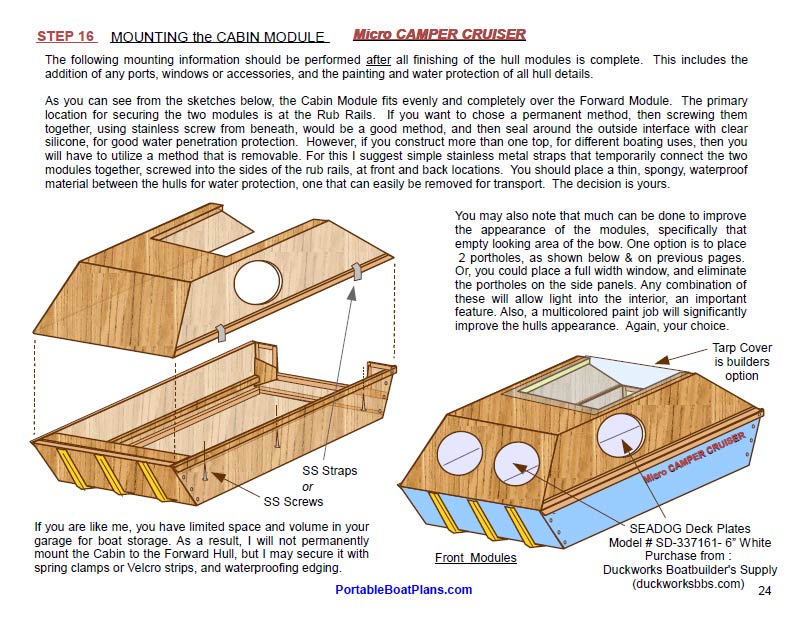

t should also be noted that the hull modules can be glued and screwed together, for those that do not have limitations of storage or transportation.

The hull can be constructed using 1/4" plywood, for greater durability, or the exterior could also be fiberglassed, allowing yet thinner and lighter (4 mm) plywood hull building material.

Any questions or comments regarding the construction and/or design of this project will be responded to in a timely fashion. Thank you for your interest, and for purchasing these plans, and good luck with your special project.

Please Note: All drawings are done free hand, and as such, some irregularities may occur.

Youtube Video Below

And don't forget to visit for new designs and updates.

Happy Boating!
Ken Simpson,

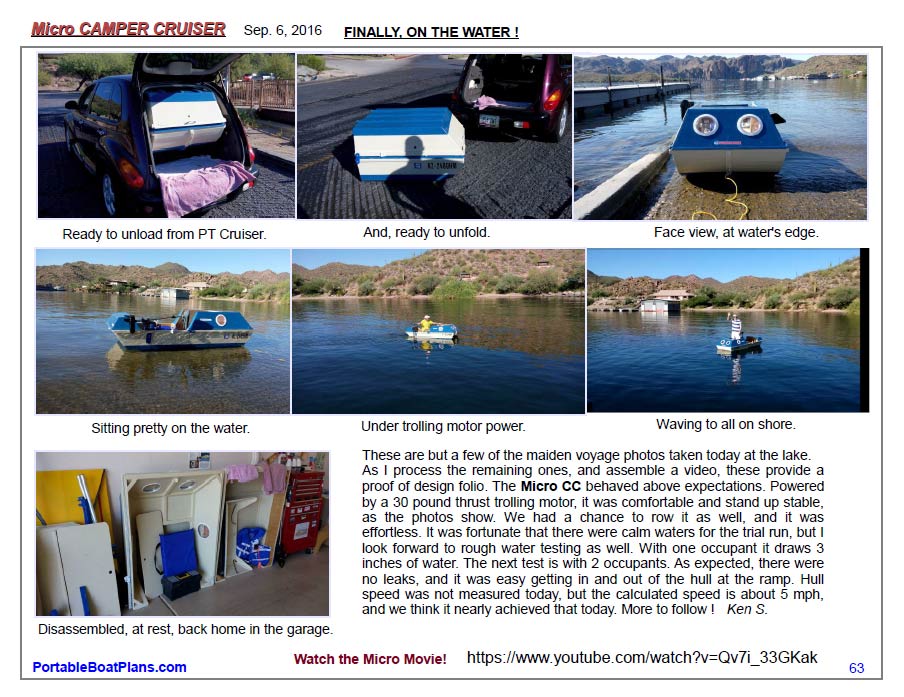

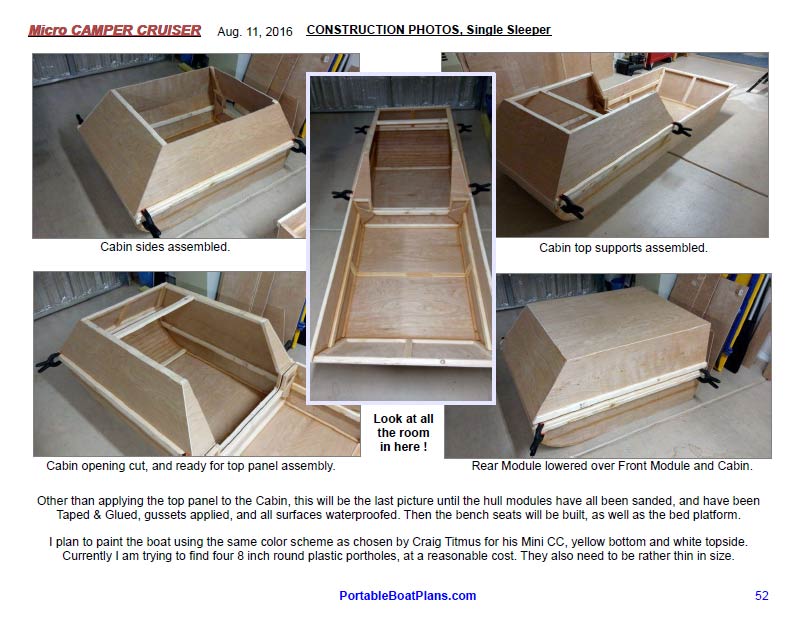

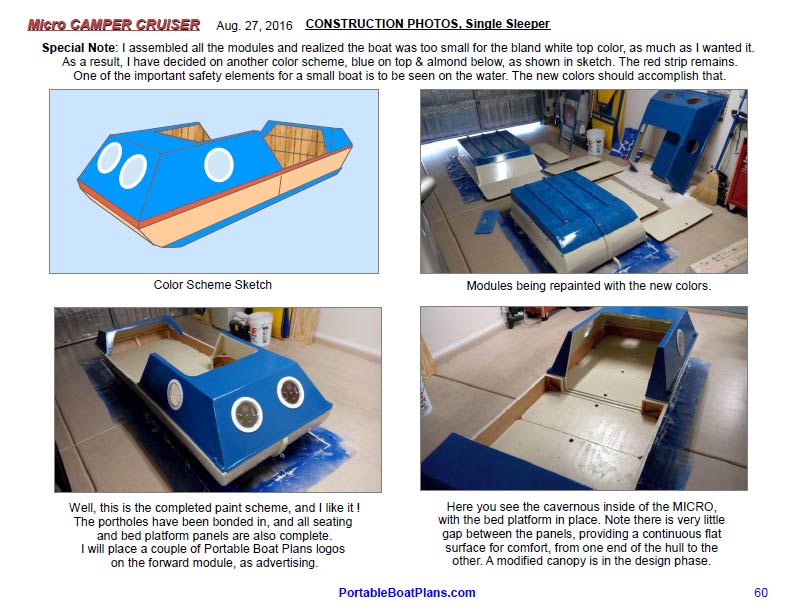

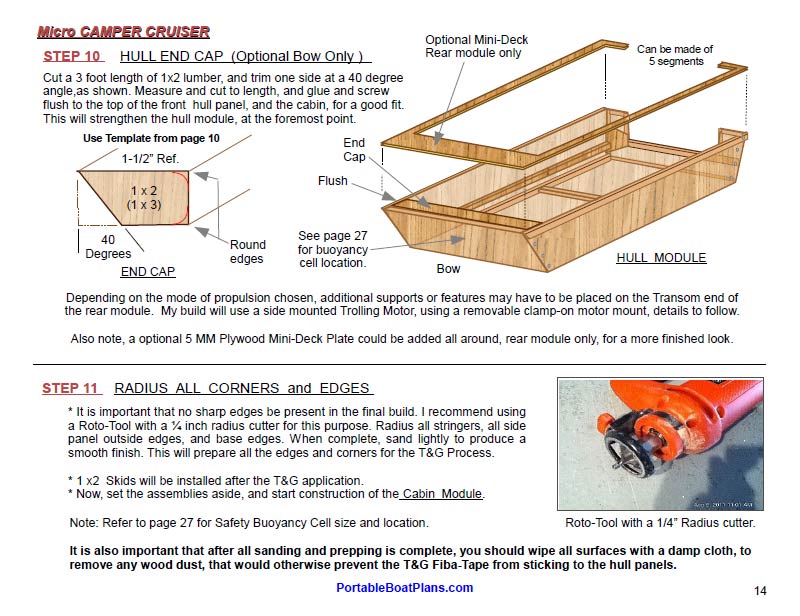

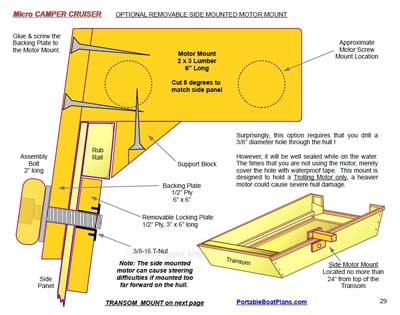

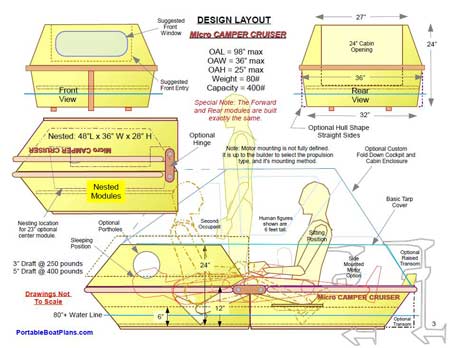

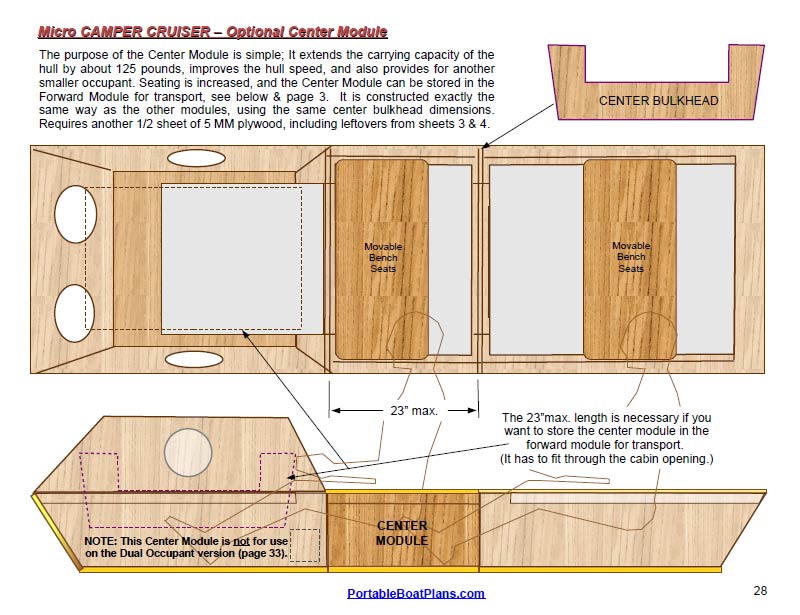

Here are some samples from the plans (click to enlarge)
