Scow 420 Free Plans

Write a Review
SKU:
JD-SCOW420-ID
Availability:
Available for download now
Free Plans - download link below

Description

For metric plans, click HERE
For imperial plans, click
HERE

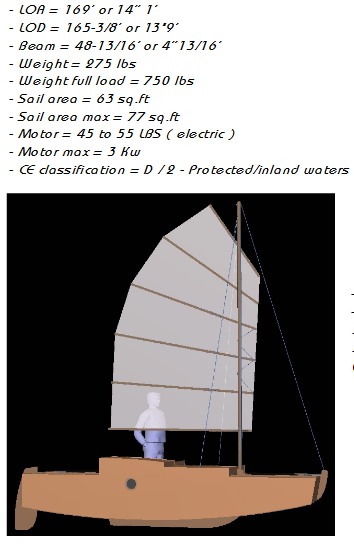

14 foot simple camper sailboat for two, designed for protected or inlands waters.

A very simple boat to build with basic tools and material, all plywood parts have the same thickness.

I recommend to use epoxy, without fiberglass, on the bottom of the hull, chines and all edges.

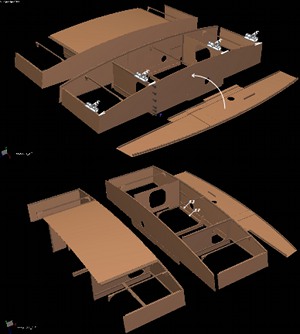

The plans detail all the dimensions, the parts nesting on plywood sheets, and the complete building sequence in 3D.

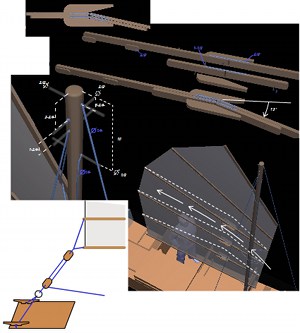

The junk rig sail is a major part of the design, you can obviously replace it by a lug sail without any structural change.

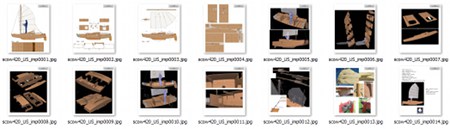

Note: These plans are a little different in that there are few words, mostly just drawings with dimensions (both metric and imperial available). It is such a simple boat to build that this is all that is necessary. Below are thumbnails of the pages that are included.
