Scow 244 Free Plans

SKU:
JD-SCOW244-ID
Availability:
Available for download now
Free Plans - download link below

Description

Free plans. To download the file, click HERE

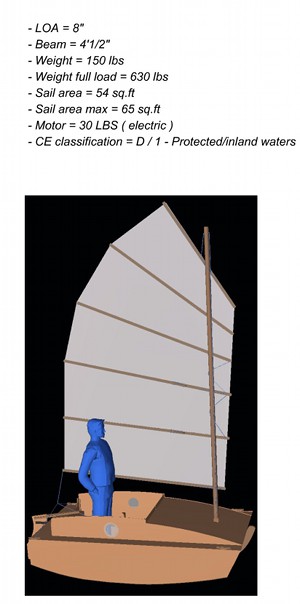

8 foot cruising sailboat for a lonely captain, and a little daysailer for youngsters.

This is a scale down of my own Scow 450.

5 1/2 sheets of ACX ¼" - 6 mm plywood.

I recommend using epoxy, without glass fiber, on the bottom of the hull, chines and all edges.

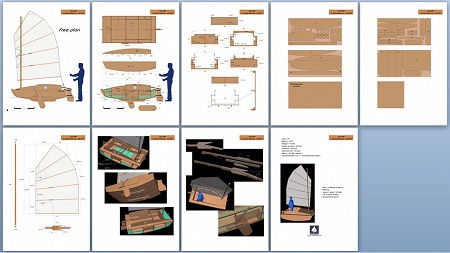

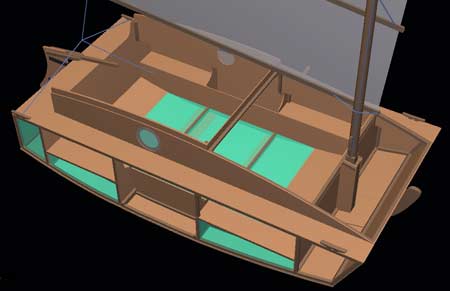

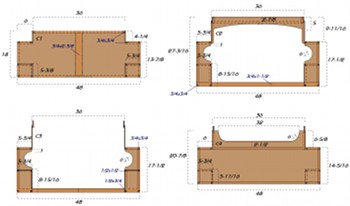

The plans details all the parts and frames dimension, the parts nesting on plywood sheets, and a 3D model.

This plan is free, like freeware. Also I provide an additional 3D building sequence at a fair low price for those who want both more details and support my work.

The junk rig sail is a major part of the design, with a simple wooden hinged batten system that improves performance to windward.

View AllClose

Additional Information

Measurement:
Metric & Imperial
