Sardine Twin 5.5 Full Plans
A bridgedeck coastal cruising catamaran
For Sardine Twin Study Plans, click HERE

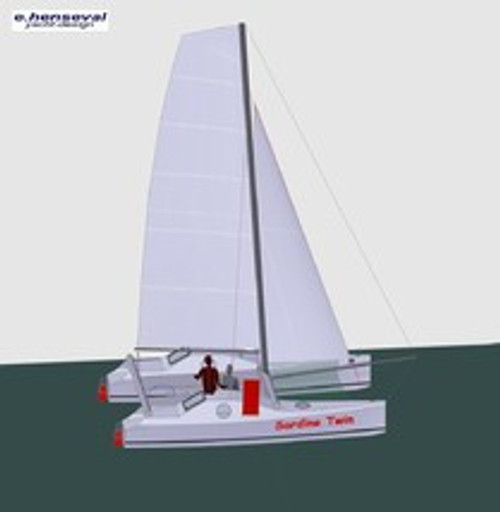

The aft part of the hull has been re-designed to fit with the catamaran version.

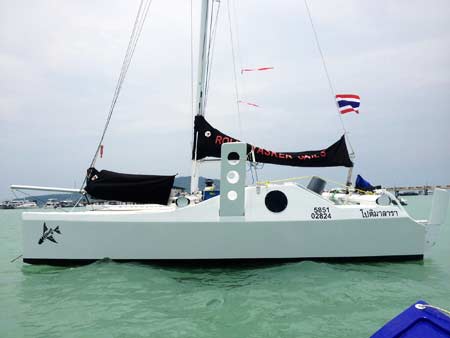

She gives us a very simple catamaran where 4 berths are possible, always with an extraordinary! headroom of 1.30m, with a lot of storage.
A porta potty can be added, and a little stove too.
She is designed for suny areas, with 18m2 of deck!
She is equiped with a central rigid area made of plywood.
A simple outboard case is bolted at the center line.
Crossbeams are made of aluminium tubes, and the mast could be a second hand one, if taken from an old hobie 18 or equivallent.
2 centerboards are sliding in their trunk, where trunks are integrated in the outside hull shell plating, to gain volume for accomodations.
Length over all : 5.70 m / Hull length : 5.50 m / DWL : 5,50 m / Beam :3,53 m
Draft : 29cm / 120cm / Displacement : 370 kg (light conditions)
Pivoting rudders / Centerboards, vertical sliding ones, on each ama
Headroom: 1,30 m
Sail area: Mainsail + Solent: 18,75 m2 / Mainsail : 13.85 m2 / Solent : 4.9 m2
Gennaker : 16.5 m2 / Spinnaker (asymetrical) : 22 m2
4 berths / Engine : outboard 2-6hp

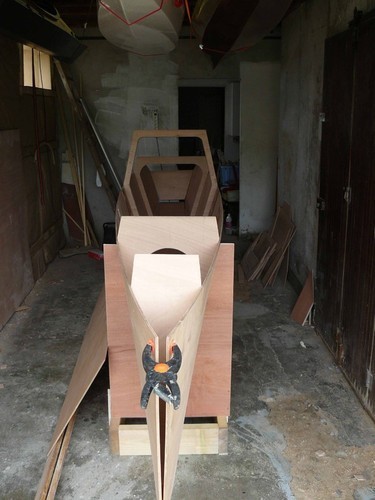

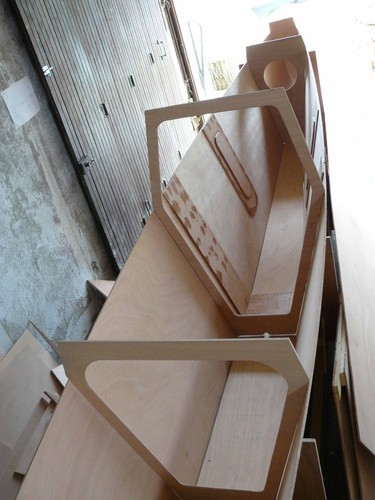

She is a stich-and-glue contruction, a very simple way to built your home-built craft.
Hull-deck: plywood 8mm thick - glass - epoxy resin / Unsinkable with foam. Total of flottability 950l / Beachable / Bolted aluminium tubes beams
Trailerable / Category of conception C3 D 4
