Edwardian 19' Strip Planked Launch Plans

Write a Review
SKU:
SEL-EDWARDIAN19
Availability:
Printed plans shipped from Great Britain
$34.00 - $371.00

Description

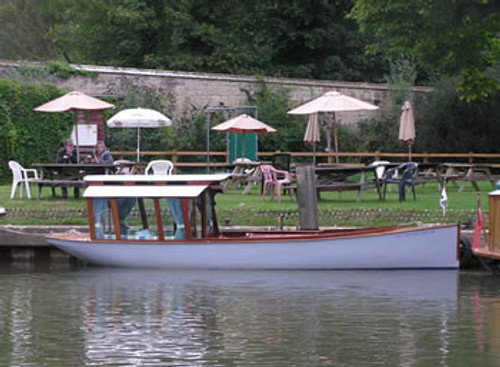

Smaller sister to the Edwardian 26, the hull of this version has also been based upon the Lifu launch. Her lines have, however, been further deepened so that she can also take the weight of batteries for electric propulsion. A 1.4 hp 48 volt motor may be used and there is room for batteries which would give a 12 hour cruising range. Alternatively, of course, she may be steam or diesel powered to suit your own requirements. The standard arrangement shown on the plans has an aft saloon which is big enough to take 2 full length bunks with stowage space for a small galley and wc. Forward is an open cockpit area with the steering position using a side wheel.

The plans show computer faired mould shapes for strip planked construction allowing the builder to get straight in to making the building mould without the need for lofting and details are given for the motor and steering installation.

Details are available of the mould shapes for a 21' x 5'10" version of the Edwardian 19.

Edwardian 19 Particulars

LOA 19' 5.79m
Beam 5'8" 1.73m
Hull Mid Depth 2'7" 0.79m
Draft 2'1" 0.64m
Maximum Headroom 4'6" 1.37m
Approx. Dry Weight 2860 lbs 1300 kg
Engine 6-8 IHP steam
Hull Shape Round bilge
Construction Methods Strip plank
Major strip wood requirements for hull 1836' of 5/8" x 1 1/4" (560m of 16x30mm) WRC
Guidance Use 6 + adults
Drawing/Design Package 7 x A1 drawings + 6 x A4 instruction/spec sheets
Additions and alterations included with the plans Moulds/jig for 21'x5'10" (6.41x1.78m) version
