24' Beaumaris Plans

Write a Review
Printed plans shipped and PDF plans emailed from Selway Fisher
$34.00 - $540.00

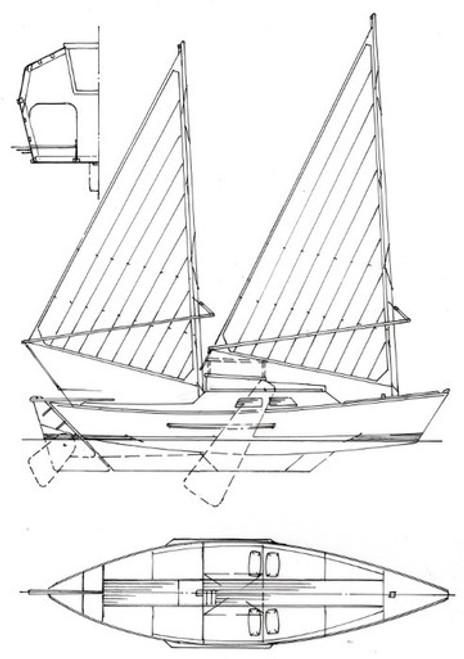

The Beaumaris 24 is one of several trailer sailers for strip planking that we have had on the drawing board recently. This particular example has accommodation which includes 3 or 4 berths, a galley and a Porta-Potti w.c., all combined with a good sized cockpit. There are 2 keel alternatives - one with a centreplate (which is kept below the cabin sole) and the other with a deeper fixed keel allowing you to install an inboard engine. The cabin is taken right out to the sides of the hull to give comfortable sitting space below. Initially the rig is based upon a simple standing lug rig set on lightweight masts and spars, but she could take other rigs - details of an alternative gaff cutter rig are included.

Computer faired mould shapes are given for strip planking the hull which has firm bilges ending in a sweet full wineglass shaped transom. The drawings now show details for side decks and a gaff cutter rig.

24' Beaumaris Particulars

LOD 23'6" 7.16m
Beam 7'6" 2.29m
Draft 2'/4'4" 0.61/1.32m
Sail Area 266 sq.ft 24.78 sq.m
Approx. Dry Weight 3220 lbs 1460 kg
Ballast 1047 lbs 474 kg
Maximum Headroom 4'10" 1.47m
Accommodation 3-4 berths plus wc and galley
Engine 9 hp inboard
Hull Shape Round bilge
Construction Methods Strip plank
Major strip wood requirements for hull 2950' of 3/4" x 1 1/4" (900m of 18x30mm) WRC
Guidance Use Coastal/offshore
Drawing/Design Package 12 x A1 drawings +11 x A4 instruction/spec sheets
Additions and alterations included with the plans Long fixed keel with inboard engine
Side deck option
Gaff cutter rig
