10 Foot Norwegian Pram Plans PDF
- LOA:
- 10'/ 3.04m
- SKU:
- PB-10FTPRAM-ID
- Availability:
- Available to download after checkout
Description
For printed plans, click HERE

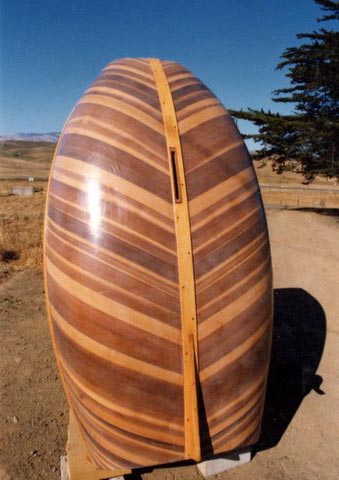

A sailing pram for double diagonal strip construction
The 10 foot Norwegian Pram is a nicely expanded version of the compact 8 footer, and provides 35 square feet of sail instead of the 8 footer's 28 square feet. Construction techniques are the same.
These plans consist of 4 large drawings. The instant download is a single PDF file which produces 4, 24" x 36" prints
Additional Information
Measurements: |
Imperial |
Designer Name: |
frank davis |
Sail area (Imperial / Metric): |
35 sq ft / 3.25 sq. m |
Rig Type: |
Sprit |
Ballast Weight: |
optional |
Keel Type: |
Centerboard |
Rudder: |
Fixed |
Length (range): |
8' - 15'11"' / 2.44m - 4.85m |
LOA: |
10'/ 3.04m |
Length at Waterline: |
8'/ 2.43m |
Beam: |
4' 1"/ 1.23m |
Hull Weight: |
Under 85 lbs / 38.56kg |
Estimated Hull Weight: |
55 lbs/24.9 kg |
Draft: |
Under 6" / 15.24cm |
Unloaded Draft: |
5"/ .127 kg |
Weight Capacity: |
300 lbs/ 136 kg |
Primary Material: |
Marine Plywood |
Method of Construction: |
Cold Moulded |
Hull: |
Monohull |
Hull Type: |
Displacement |
Hull Shape: |
Flat bottom |
Power Source: |
Human |
Motor: |
Outboard |
Horsepower Rating: |
electric |
Built-in Floatation: |
Optional |
Trailerable: |
Yes |
Cartop: |
Yes |
Unit of Measure: |
Imperial |
Instruction Manual: |
General Instructions and Sequence |
Lofting Required: |
Yes |
Recommended Experience Level: |
Intermediate |
Designer's Thoughts on Experience Level: |
double diagonal construction |
Boat Type: |
Sailboat |
