Sou'wester Plans PDF

SKU:
JOE-SOUWESTER-ID
Availability:
Available for download now
$20.00

Description

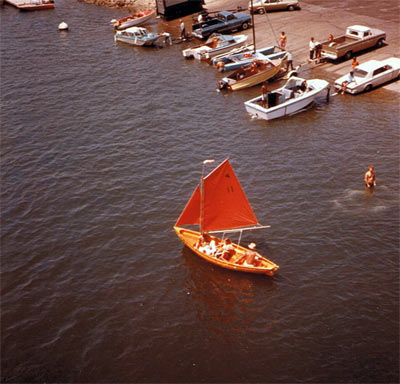

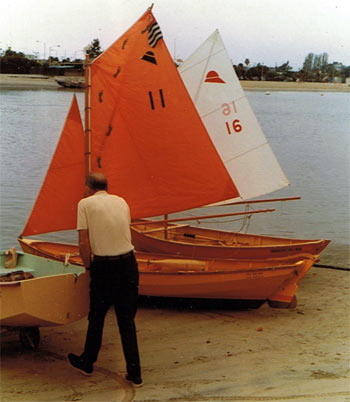

The Sou'Wester Dory a traditional type for the modern homebuilder.

This is a type small boat, which was developed by New England fisherman for use off the beach. It is primarily rowing boat and performs beautifully under oars.

It will sail well with modest sail area. The plans show an old fashioned rig, which is simple and reliable.

Provision may be made to use a small outboard motor - 3 or 4 horsepower is about the maximum, more would be overpowered. This is no speedboat.

Construction is brought up to date, waterproof plywood with taped seams, the outer plywood with fiberglass or synthetic cloth and resin. The resulting structure is effectively one piece, strong and permantly watertight.


click image above to enlarge



Included in Sou'wester plans are the following:

Booklet:

Contents
GS-101 Lofting
GS-102 Plywood Info.
GS-103 Plywood Scarfing (2 pages)
GS-104 CB Trunk Plug
P-7 CB Trunk Construction (2 pages)
GS-182-T1 Taped Seam Construction
GS-182-T2 Plywood dory Assembly

Drawings

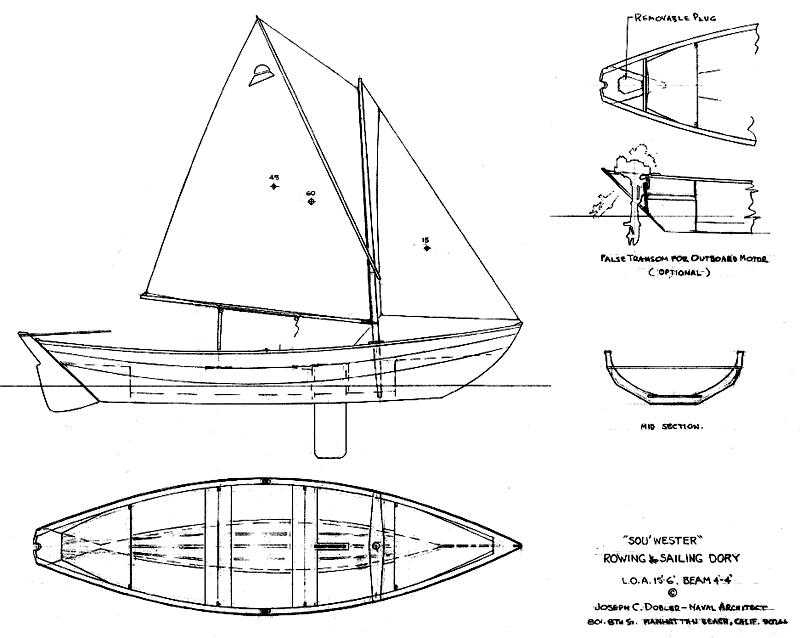

182-1 - Sou'Wester - Rowing and Sailing Dory
182-2 - Lines
182-2-1 - Lines - 4' 8" Beam Alternative
182-3 - Construction
182-4 - Spars, CB & Rudder
182-5 - Setup Diagram
182-6 - Alternate Pivoting CB & Trunk
182-10 - Sail Plan
182-11 - Rigging

Sou'wester

LOA=15'6"
LWL=12'0"
Beam=4'4"
Draft, keel up=0'6"
Draft, keel dn=2'4"
Sail Area=60 sf.

Plywood Taped Seam Construction

View AllClose

Additional Information

Measurements:
Imperial
