Pro A Plans PDF

LOA:
19' 3-1/2" / 5.8m
SKU:
PK-PROA-PK
Availability:
Download after check out
$40.00

Description

Pro a canoe

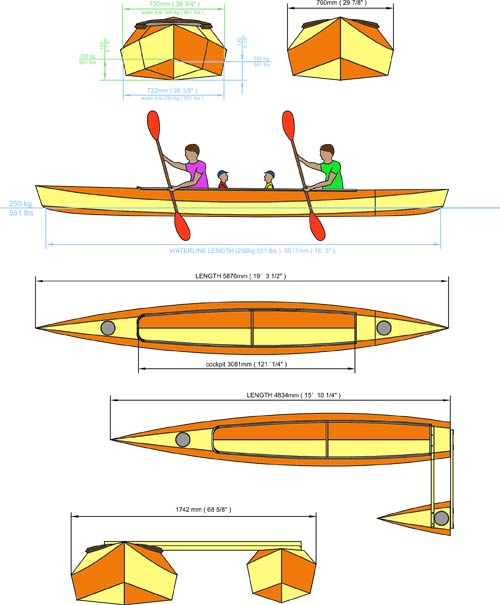

Length 5876mm ( 19' 3-1/2" )
Beam 760mm ( 29-7/8" )




Pro a canoe is a big open kayak or canoe. She has long open cockpit, so she is meant to be used in sheltered waters. She can carry two adults + one to three small kids. Max total load is ca 300kg including boat weight - around 30-35 kg ( 66- 77 lbs ) depending of materials used and builder.

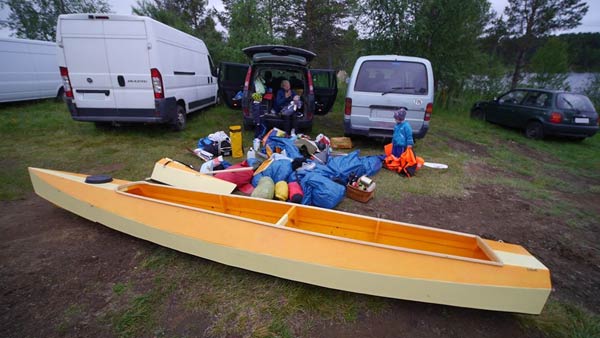

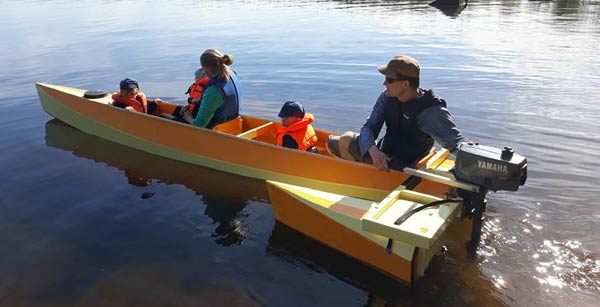

Boat is built as two parts. Break point is determined by length of two ply sheets. Stern part is fastened with bolts over waterline. The stern part can also be attached to the side for trolling motor or max 2hp outboard. This sidecar option makes very stable platform for fishing etc.

There are also plans for small outriggers ( foam ). Those are for safety when kids are onboard.

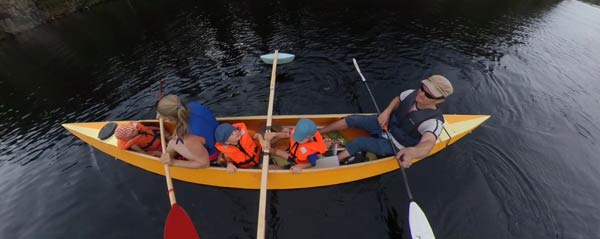

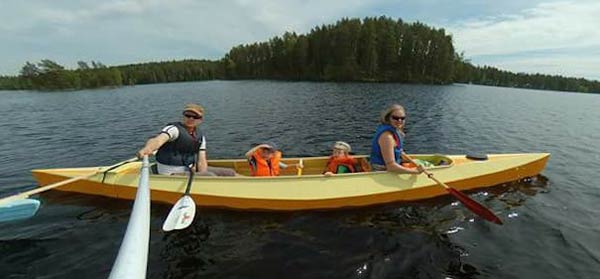

We have made several overnight trips with three small kids and it can take tons of gear.

Pro a canoe
Length 5876mm ( 19´ 3 1/2" )
Beam 760mm ( 29 7/8" )
View AllClose

Additional Information

Measurements:
Metric
Designer Name:
Perttu Korhonen
Length (range):
16' - 23'11" / 4.88m - 7.29m
LOA:
19' 3-1/2" / 5.8m
Length at Waterline:
18`5" / 5617"
Beam:
29-7/8" &/ 760mm
Hull Weight:
Under 85 lbs / 38.56kg
Estimated Hull Weight:
77lbs / 35 kg
Draft:
Under 6" / 15.24cm
Unloaded Draft:
5 1/8" / 130mm
Number of Occupants:
2+2
Weight Capacity:
584 lbs / 265 kg
Primary Material:
Marine Plywood
Method of Construction:
Stitch and Glue
Hull:
Monohull
Hull Type:
Displacement
Hull Shape:
V bottom
Power Source:
Human
Built-in Floatation:
Yes
Trailerable:
Yes
Cartop:
Yes
Unit of Measure:
Metric
Instruction Manual:
Step-by-Step Instructions
Lofting Required:
Yes
Recommended Experience Level:
Intermediate
Designer's Thoughts on Experience Level:
Big open cockpit need some support while building
Boat Type:
Canoe / Kayak / SUP
